SC064W-013-HS-CZ - Datasheet
MBA
Category Information

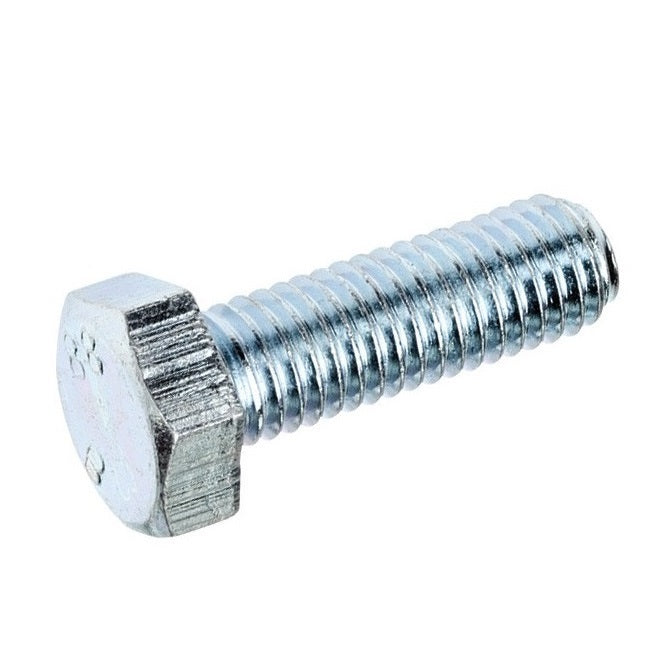

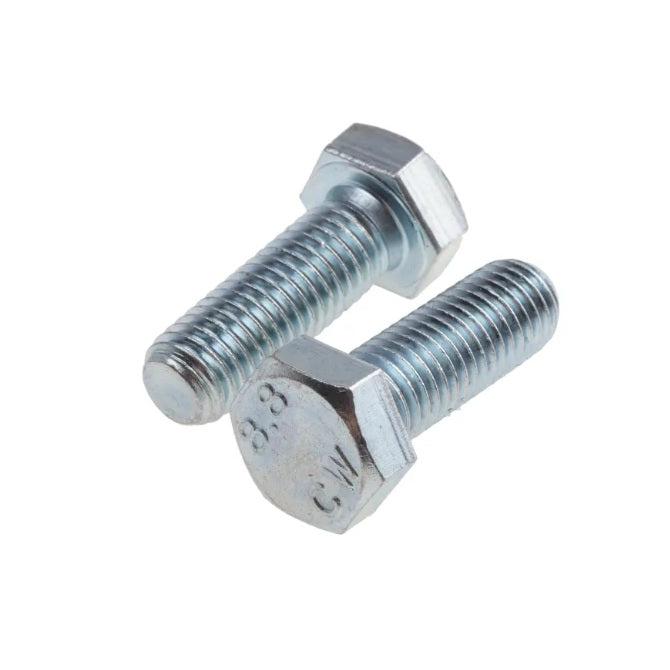

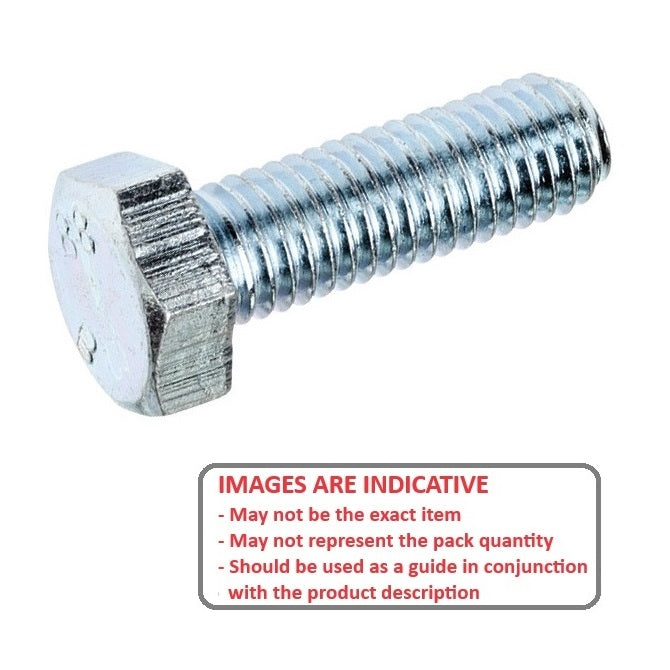

Screws - Hex Head - Full Thread - Steel Zinc PlatedSteel Zinc Plated Full Thread Hex Head Screws. BSW and METRIC - Set Screws
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

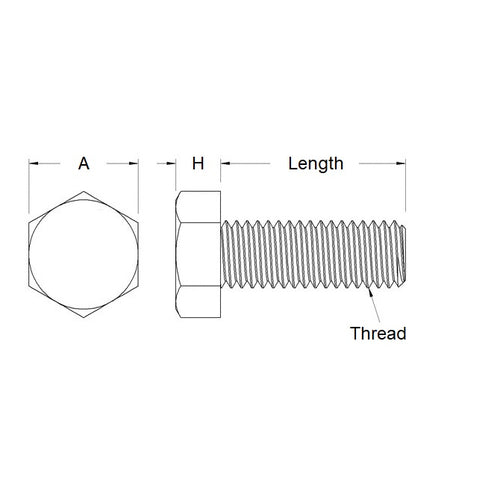

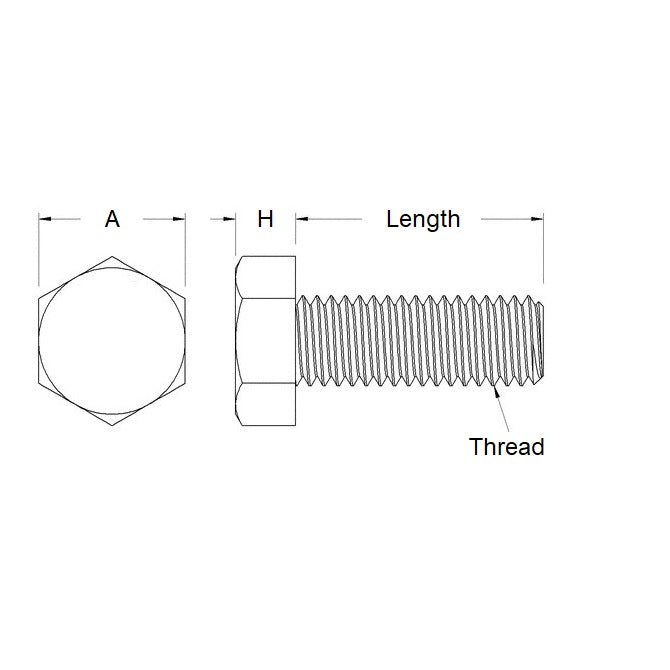

- Thread Size (C) : 1/4-20 BSW (6.35mm)
- Thread Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material Zinc Plated Steel
- Max Head Diameter 11.13 mm
- Max Head Height 4.14 mm
- Type Set Screw - Full Thread
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSHSZP1412
