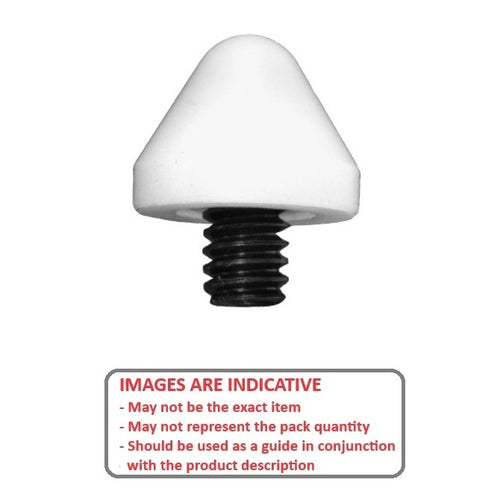

MCOD-0001-013 - Datasheet

MBA

Product Data

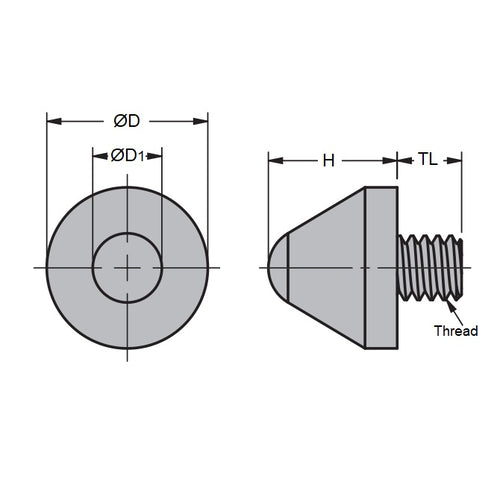

• Thread : 1/4-12 UNC 2A
• Cone Height 12.70 mm
  (Equiv. 0.5 in.)
• Thread Length 6.35 mm
  (Equiv. 0.25 in.)
• Tip Radius 3.96 mm

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Cylindrical Bobbin Mounts PDF Quick Guide


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• CMM14075
• CMM-14075
