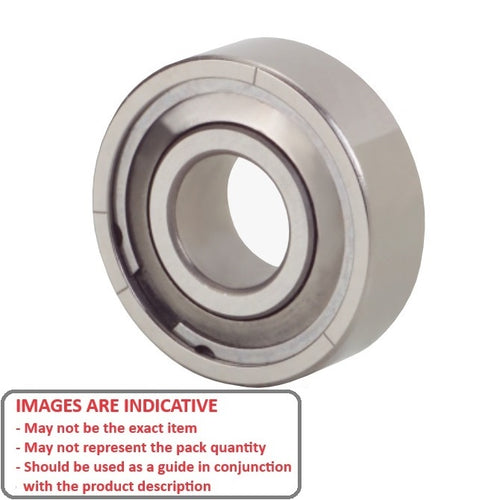

SR1B-FF-MC34-GR7-R-L23 - Datasheet
Myonic
Category Information
Bearings - Single Row Ball - Unflanged - High Precision - StandardStandard High Precision Unflanged Single Row Ball Bearings. Stainless Steel Bearings - Abec 5 and Abec 7.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings.
- High precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).
Product Data
- ID (d)
:
1.397
mm
+ 0.000 / - 0.004
(Equiv. 0.055 in.) - OD (D)
4.763
mm
+ 0.000 / - 0.005
(Equiv. 0.188 in.) - Width (B)
2.779
mm
+ 0.000 / - 0.040
(Equiv. 0.109 in.) - Precision Grade Abec 7
- Closure Type FF
- Bearing Type Radial
- Lubricant Windsorlube L245X - L23 Oil
- Material Stainless Steel AISI 440C - Ribbon Retainer Low Torque
- Lubrication Type Oil
- Lubrication Name L23 Windsorlube L245X
- Basic Part R1B
- Limiting Speed 143000
- Cage Type Ribbon
- Static Load Rating KGf 7
- Dynamic Load Rating KGf 24
- Radii 0.10 mm
- Inner Shoulder (UI) 2.33mm
- Outer Shoulder (UO) 4.10 mm
- Number of Balls 6
- Clearance MC34 (5 to 10)
- Precision Grade Abec 7
- Closure Type FF
- Max Temperature 170 Deg. C
