DVT1-0318-HCH - Datasheet

MBA

Category Information

Dual Vee - Tracks - Steel

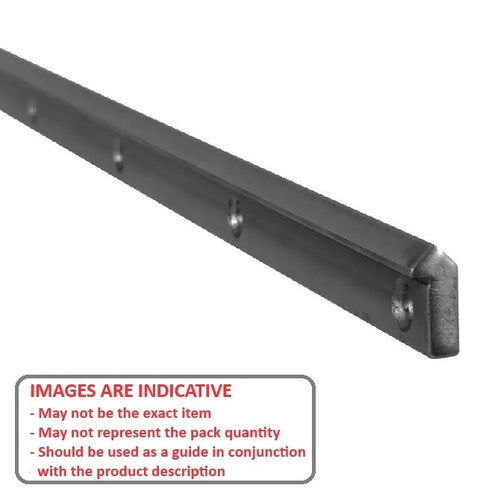

Steel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.

  • Match Track Size with same size Guide Wheel.

Product Data

  • Track Size : 1
  • Overall Length (L) 317.5 mm
    (Equiv. 12.5 in.)
  • Overall Width (F) 4.75 mm
    (Equiv. 0.187 in.)
  • Height (E / MDT) 11.11 / 3.18 mm
  • Type Single Edged
  • Hole Spacing (C) 50.8 mm
  • Number of Holes 7 (3.96mm)
  • End Hole Spacing (B) 6.35 mm
  • Condition Hardened Rc 58 - 60
  • Material Carbon Steel AISI 1045
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • WZ10
    • WZ-10
    • A7Q1511250
    • A7Q15-11250
    • A7Q15M11250
    View full details

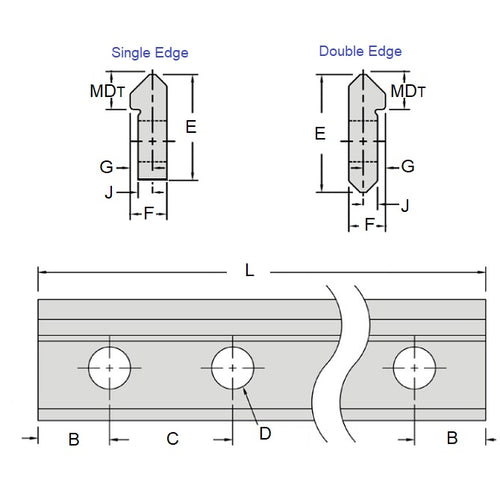

    DVT1-0318-HCHDiagramDVT1-0318-HCHImage
