AR104RS - Datasheet
MBA
Category Information

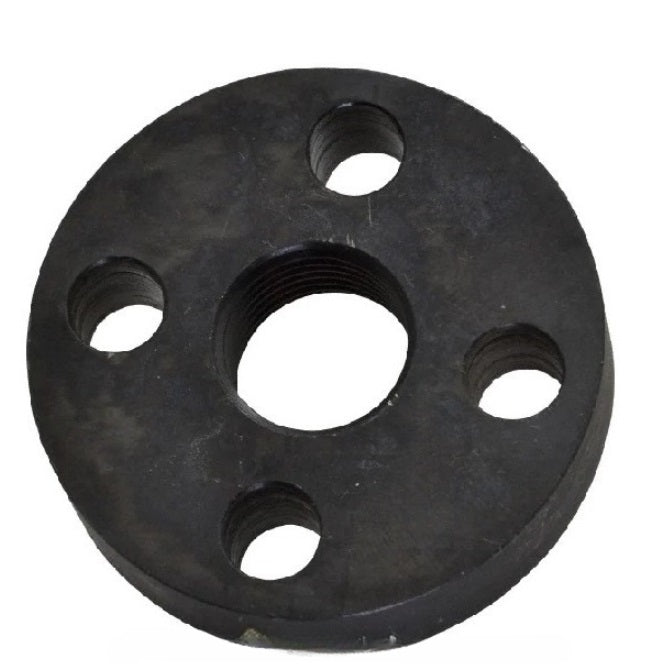

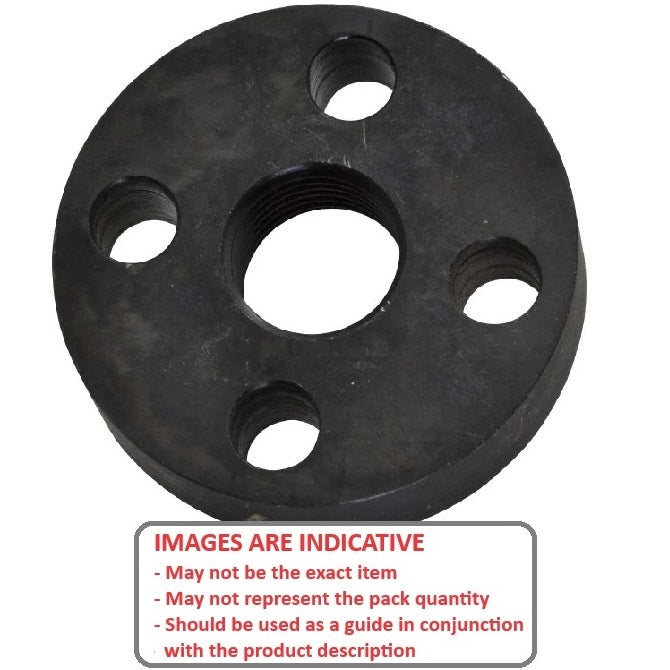

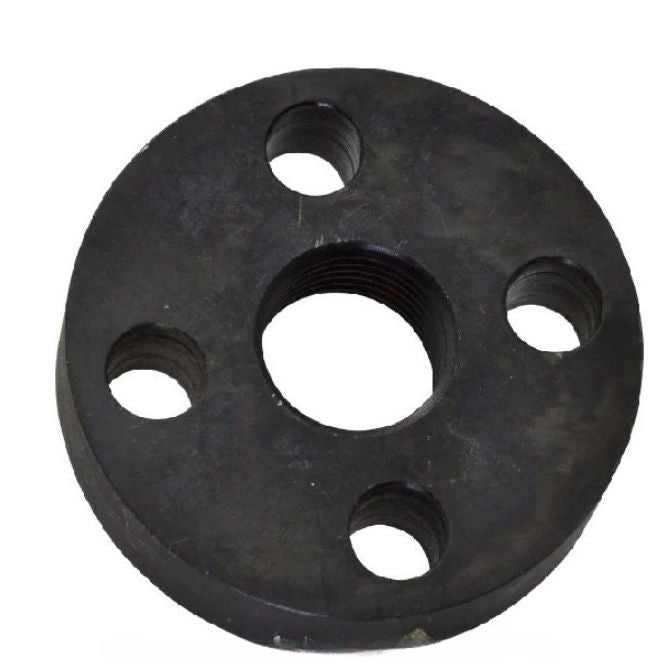

Leadscrew - Nut Flanges - For Acme NutsFor Acme Nuts Nut Flanges Leadscrew. Flanges for Acme leadscrew thread nuts imperial
- An expanded range may be available on special order. Please enquire.
- These flanges are screwed onto the outer thread of the red leadscrew nuts
- This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved
Product Data

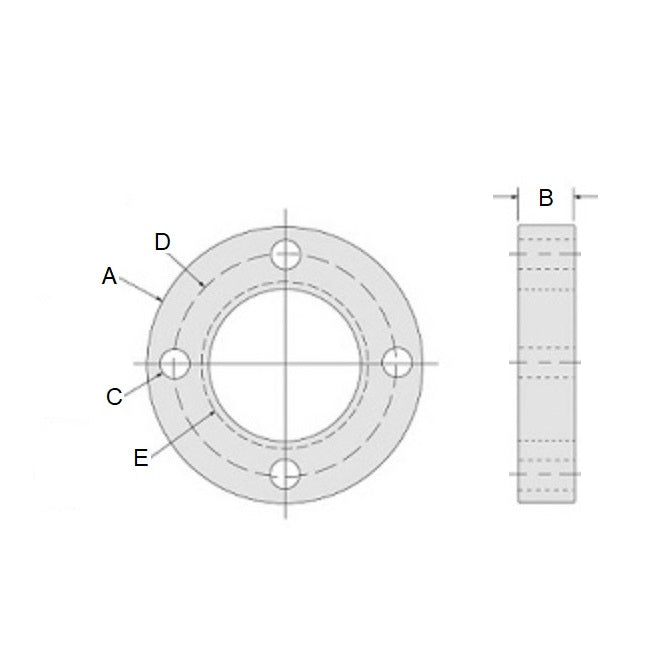

- Suitable Nut Mounting Thread : 1.3/8-16
- Flange OD 70.104 mm
- Flange Thickness 13.462 mm
- Mounting Hole Diameter 57.404 mm
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® AR-104
- AR104
