ACE9RS - Datasheet

ACE

Category Information

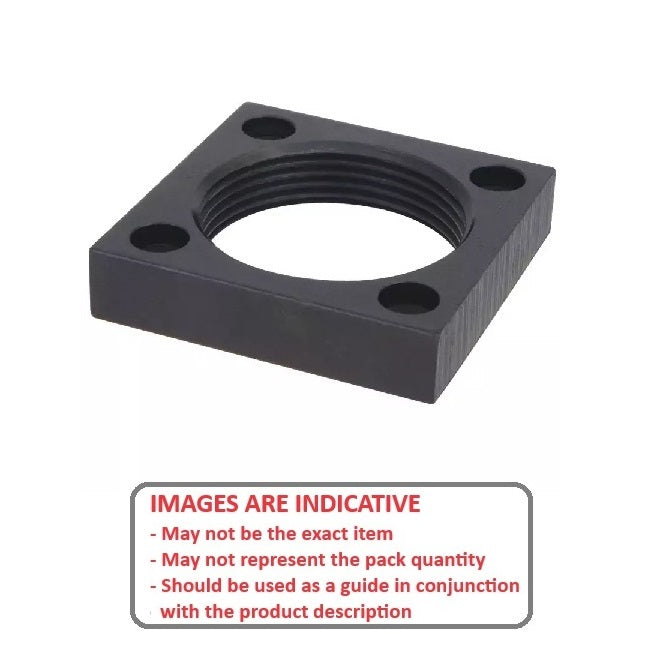

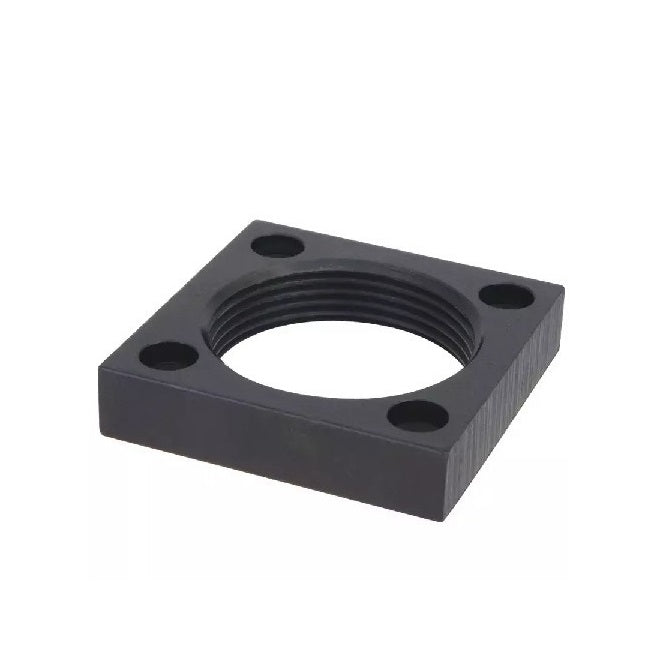

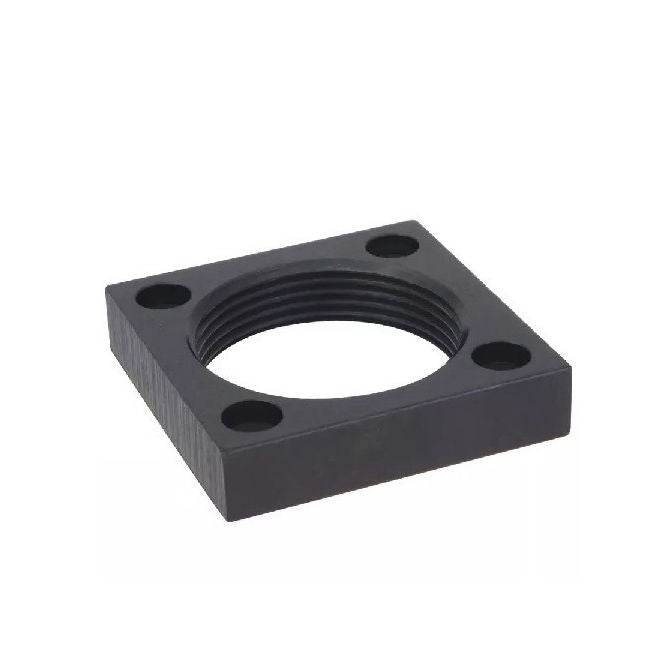

Shock Absorbers - Accessories - Mounting Blocks

Mounting Blocks Accessories Shock Absorbers. This is the main category in this series

    Product Data

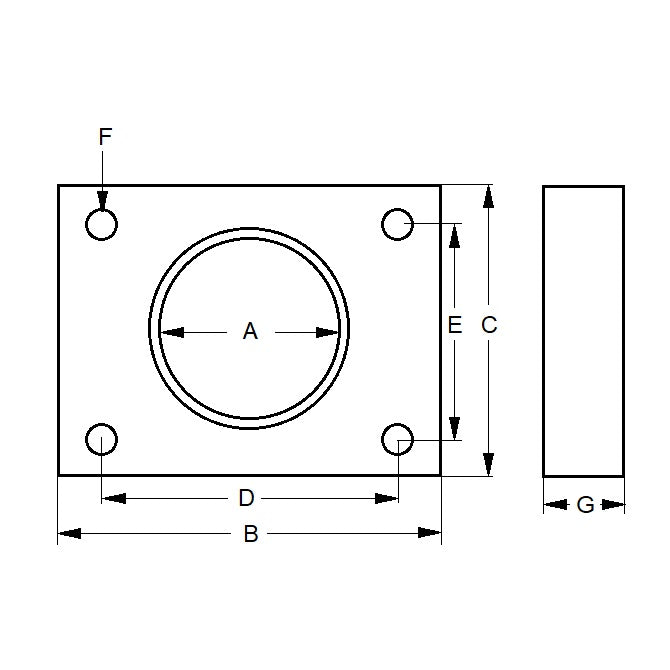

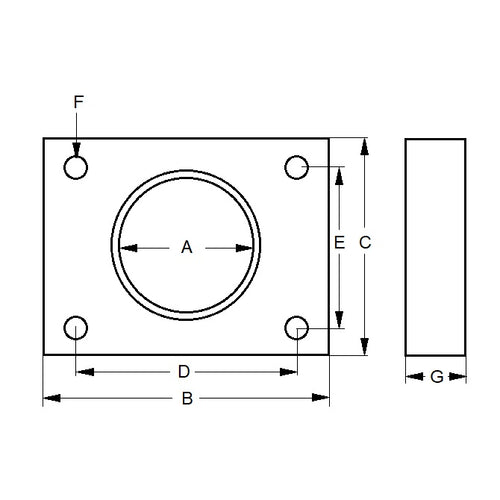

    • Suitable Thread (A) : 1.3/8-12 UNF (34.93mm)
    • Length (B) 50.80 mm
      (Equiv. 2 in.)
    • Width (C) 44.45 mm
      (Equiv. 1.75 in.)
    • Height (G) 9.65 mm
    • Bolt Centres (D/E) 41.15 / 28.45 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-9
      • ACE9
