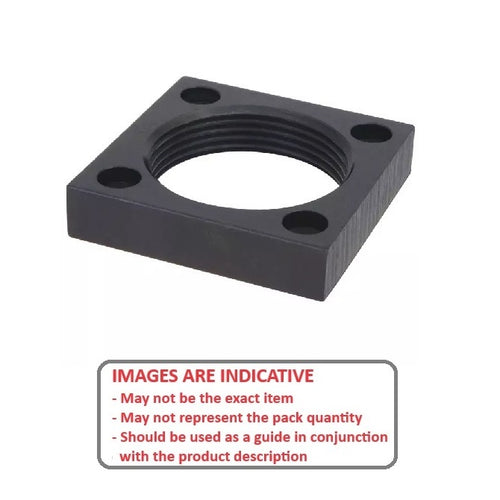

ACE10RS - Datasheet
ACE
Category Information
Shock Absorbers - Accessories - Mounting BlocksMounting Blocks Accessories Shock Absorbers. This is the main category in this series
Product Data

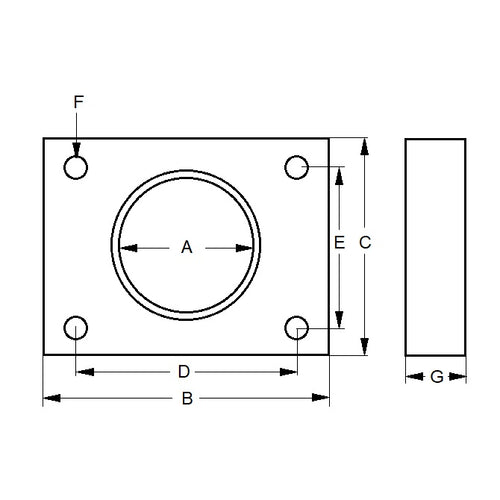

- Suitable Thread (A) : 1.3/4-12
- Length (B)
76.20
mm
(Equiv. 3 in.) - Width (C)
57.15
mm
(Equiv. 2.25 in.) - Height (G) 12.70 mm
- Bolt Centres (D/E) 60.45 / 41.15 mm
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE-10
- ACE10
