ACE46RS - Datasheet

ACE

Category Information

Shock Absorbers - Accessories - Flanged Stop Collars

Flanged Stop Collars Accessories Shock Absorbers. This is the main category in this series

    Product Data

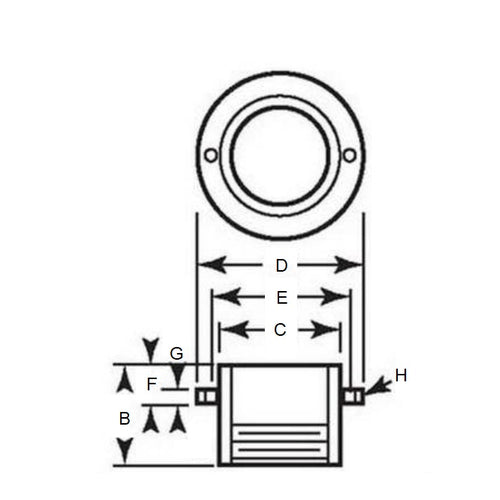

    • Suitable Thread : 1.3/4-12
    • Length (C) 57.15 mm
      (Equiv. 2.25 in.)
    • Diameter (B) 38.10 mm
      (Equiv. 1.5 in.)
    • Overall Length (D) 82.55 mm
    • Flange Thickness (G) 6.35 mm
    • Flange Height (F) 22.35 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-46
      • ACE46
      View full details

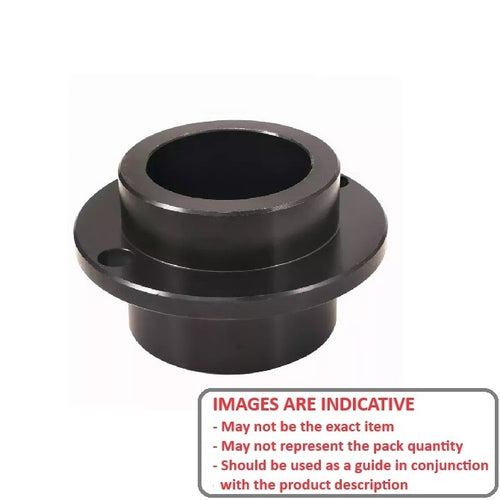

      ACE46RSDiagramACE46RSImage
