HDP012-03R-S4 - Datasheet
NoCor
Category Information

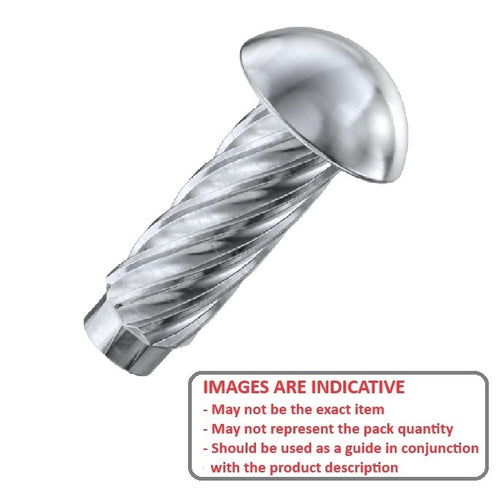

Pins - Hammer Drive - Round Head Stainless SteelRound Head Stainless Steel Hammer Drive Pins. Used to replace screws where the need to remove the pin is unlikely.
- Stainless Steel 304 Grade
- Simple, low cost assembly.
- Secure - unlike a machine screw, a drive stud does not depend on tightening torque to be retained in the assembly.
- Drive studs do not require lock washers to prevent back-out.
- Designed for standard metric hole sizes and installation by hammer or press. Cold formed pins with helical knurls.

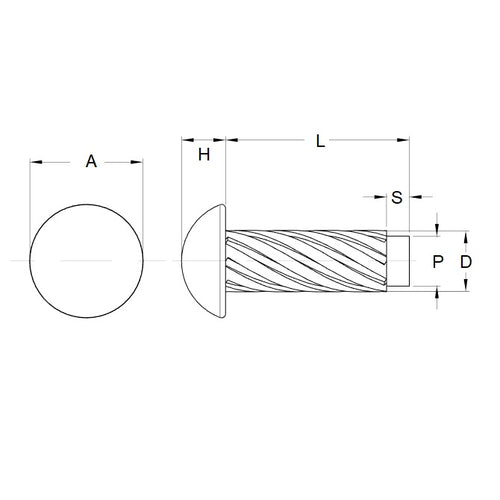

Product Data
- Min Hole Diameter
:
1.24
mm
(Equiv. 0.049 in.) - Approx. Length (l)
3.2
mm
(Equiv. 0.126 in.) - Max Hole Dia.
1.32
mm
(Equiv. 0.052 in.) - Approx Pin Diameter (d1) 1.52 mm
- Max Head Diameter (d2) 2.51 mm
- Max Head Thickness (h) 0.86 mm
- Nom. Pilot Length 1.2 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best V93004
