NT127F-HX-S6 - Datasheet
Brighton Best
Category Information

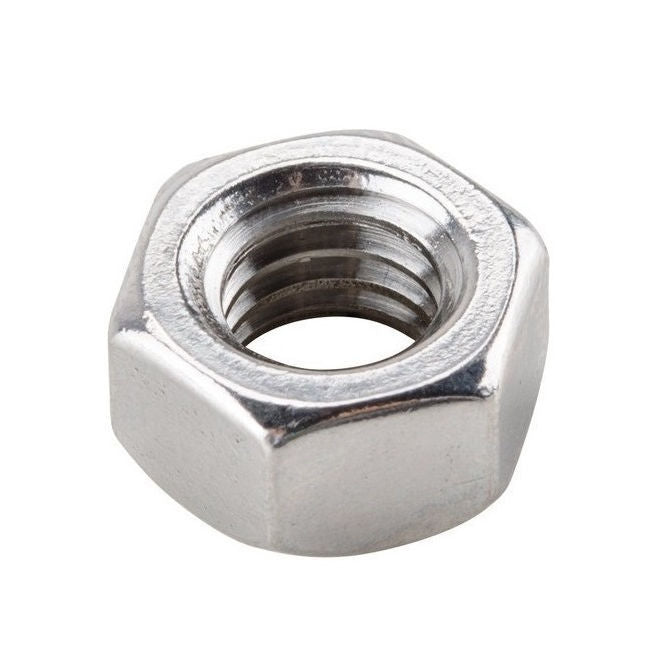

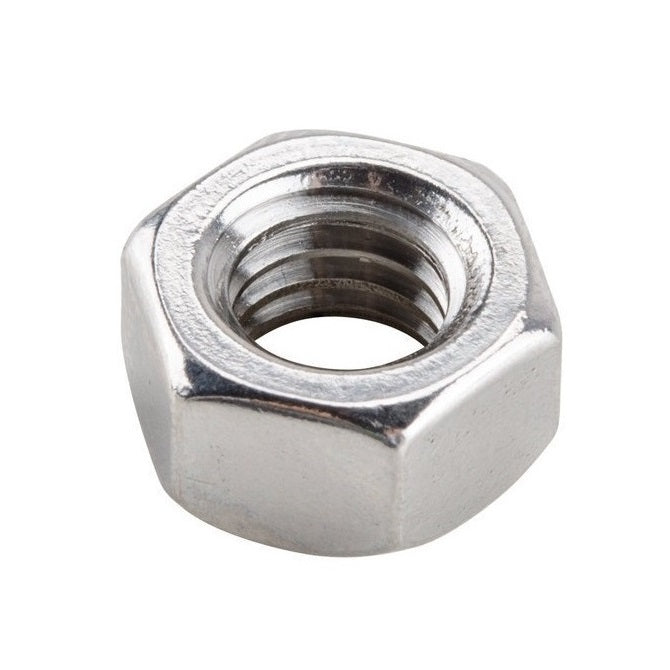

Nuts - Hexagonal - Full - Stainless SteelStainless Steel Full Hexagonal Nuts. UNC - UNF - BA - METRIC - BSW - Course - Fine - Extra Fine.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 1/2-20 UNF (12.7mm)
- Thickness (H)
11
mm
(Equiv. 0.433 in.) - Across Flats (A/F)
21
mm
(Equiv. 0.827 in.) - Type Standard
- Pitch 1.270 mm
- Threads Per Inch 20 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 763078
- 94804A345
