RCL-012-015-Z - Datasheet
MBA
Category Information

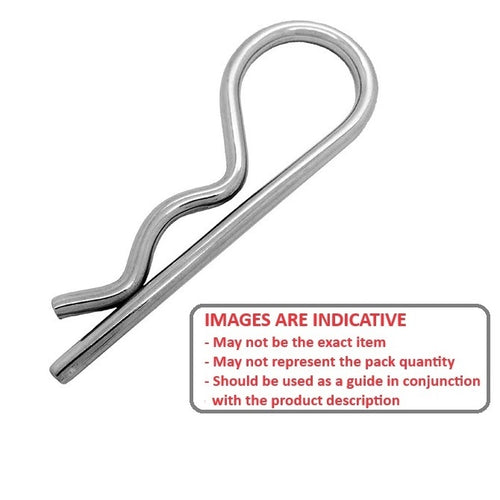

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

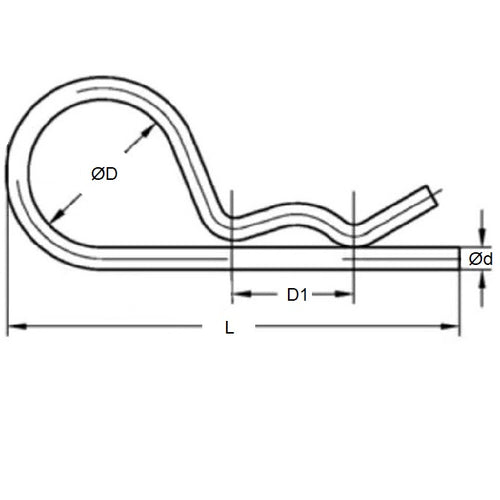

- Wire Thickness (d)
:
1.20
mm
(Equiv. 0.047 in.) - Length (L)
15.0
mm
(Equiv. 0.591 in.) - Material Zinc Plated
- Drill Hole Size 1.59 mm
- Inside Eye Diameter (D) 3.18 mm
- Shaft Size Range 3.18 to 4.76 mm
- Approx. Bridge Length (D1) 5 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A031
- A9Q3421
- A9Q34-21
