EB-145RS - Datasheet
MBA
Category Information

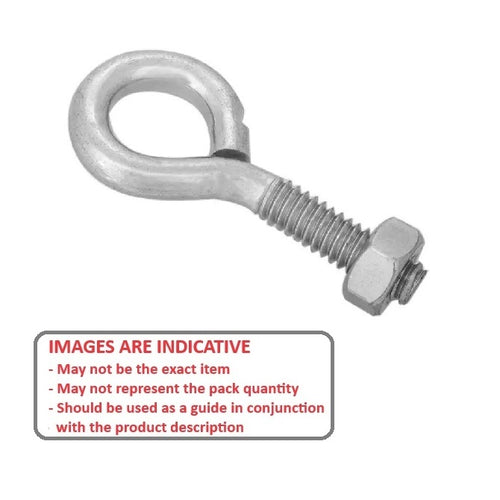

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Complete with nut.
- Rolled threads.
Product Data
- Thread : 1/2-13 UNC (12.7mm)
- Overall Length
95.250
mm
(Equiv. 3.75 in.) - Shank Length
38.100
mm
(Equiv. 1.5 in.) - Thread Length 12.700 mm
- Eye Inside Diameter 12.700 mm
