CHE-117RS - Datasheet

MBA

Category Information

Eye Bolts - Partial Threaded Shank - Shouldered - Stainless Steel

Stainless Steel Shouldered Partial Threaded Shank Eye Bolts. 316 Stainless Steel

  • Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Shank Length 82.550 mm
    (Equiv. 3.25 in.)
  • Eye Inside Diameter 25.400 mm
    (Equiv. 1 in.)
  • Rated Capacity 998 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3032T44
    View full details

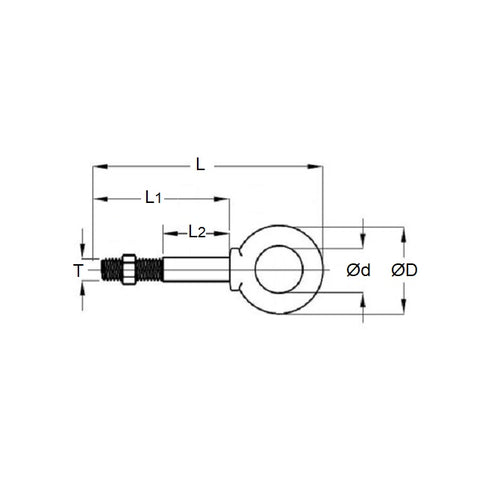

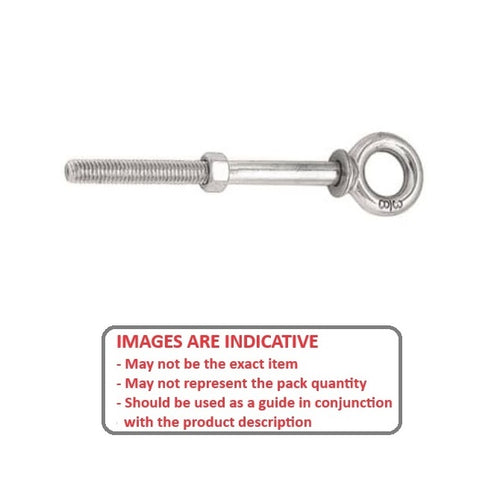

    CHE-117RSDiagramCHE-117RSImage
