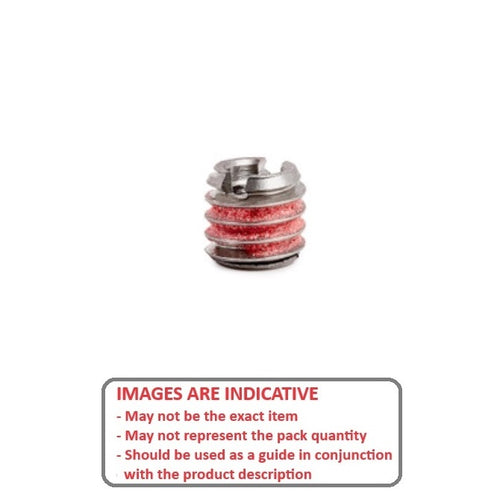

EZL-127C-191C-167-S3 - Datasheet
MBA
Category Information
Thread Repair - Inserts - EZ-Lok - Solid Stainless SteelSolid Stainless Steel EZ-Lok Inserts Thread Repair. Easy to install with a standard tap, bolt and wrench.
- Automatic self locking pressure activated adhesive on external thread.
- Prevent or repair stripped threads
- No special tools required. Simply drill and tap the hole to suit the external thread.
- Install with a bolt and wrench
- Metric, UNC and UNF
Product Data
- Internal Thread : 1/2-13 UNC (12.7mm)
- Length
16.66
mm
(Equiv. 0.656 in.) - External Tap Size 3/4-10 UNC (19.05mm)
- Tapping Hole Size 16.67 mm
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- EZ-LOK 303-8
- 90247A016
- 3038
