Miniature Bearings Australia
EB-265RS - Datasheet
MBA
Category Information

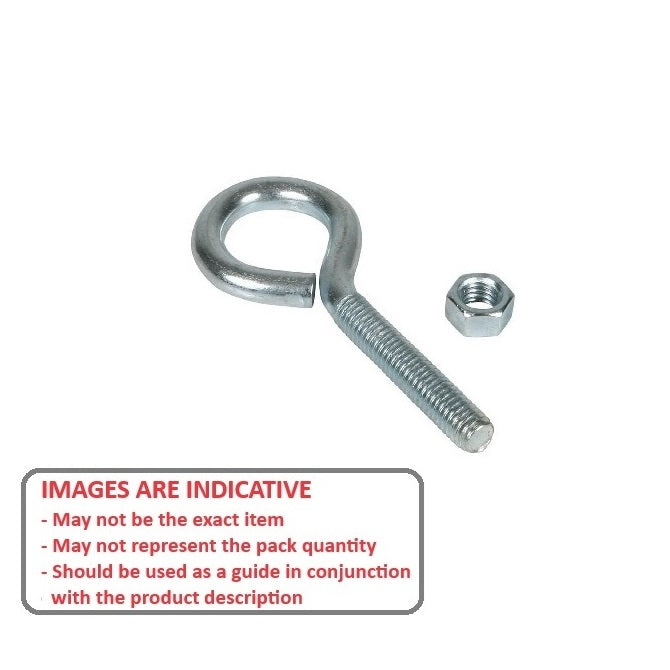

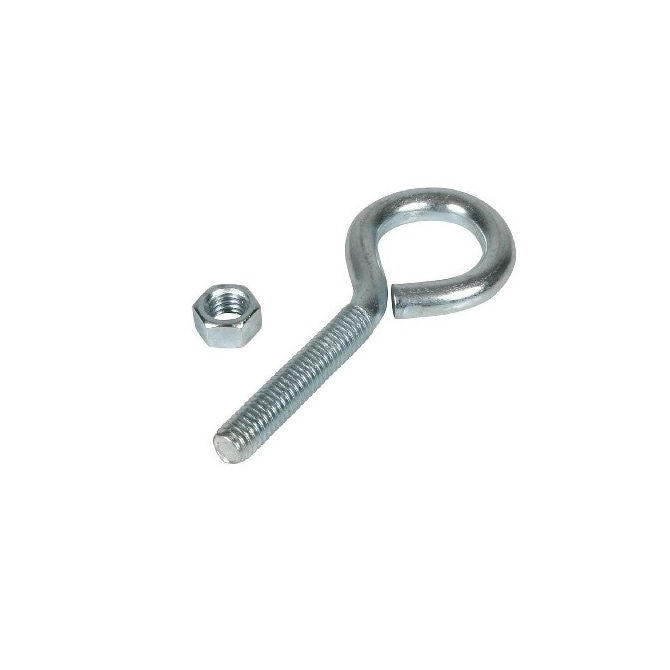

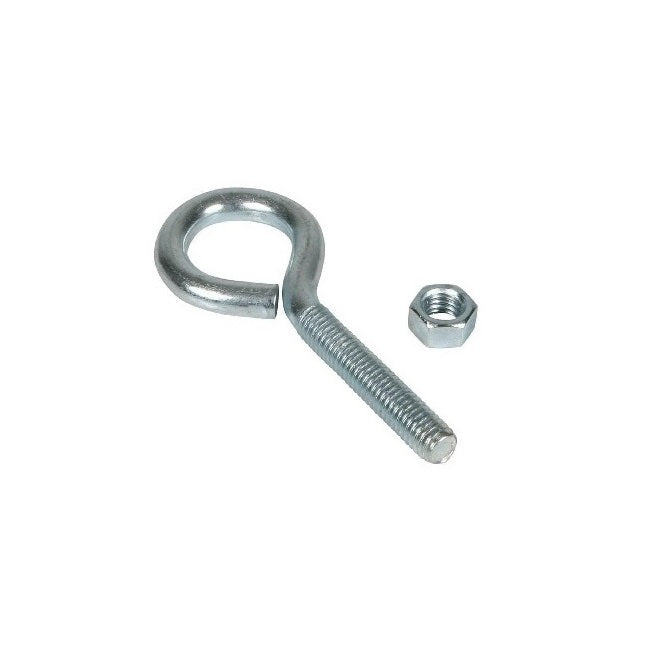

Eye Bolts - Bent - SteelSteel Bent Eye Bolts. Not recommended for lifting.
- Carbon steel zinc plated.
- Complete with nut.
- Rolled threads.
Product Data
- Thread : 1/2-13 UNC (12.7mm)
- Overall Length
127.000
mm
(Equiv. 5 in.) - Shank Length
114.300
mm
(Equiv. 4.5 in.) - Thread Length 12.700 mm
- Eye Inside Diameter 9.525 mm
Product Compliance and Data
Additional Resources
