SC127C-089-B-SK-CZ - Datasheet
Brighton Best
Category Information

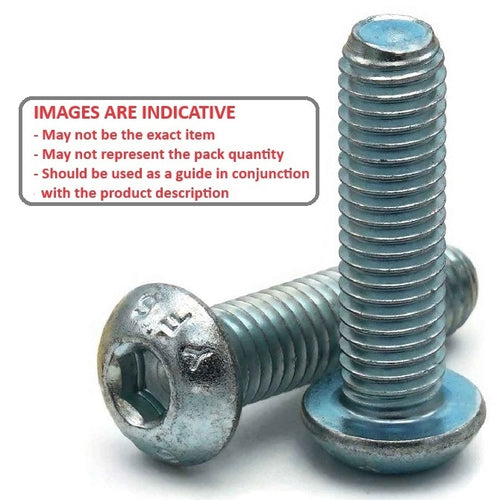

Screws - Button - Socket - Zinc PlatedZinc Plated Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : 1/2-13 UNC (12.7mm)
- Thread Length (L)
88.9
mm
(Equiv. 3.5 in.) - Material Zinc Plated Steel
- Max Head Diameter 22.2 mm
- Max Head Height 6.7 mm
- Hex Key (D) 7.94 (5/16) mm
- Pitch 1.954 mm
- Threads Per Inch 13 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 874204
