KF127C-080-4L - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 80.01 mm
    (Equiv. 3.15 in.)
  • Thread Length 19.1 mm
    (Equiv. 0.752 in.)
  • Colour Black
  • Hub Diameter (C) 30.99 mm
  • Hub Length (D) 18.03 mm
  • Knob Height (B) 40.89 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL-120
  • JCL120
View full details

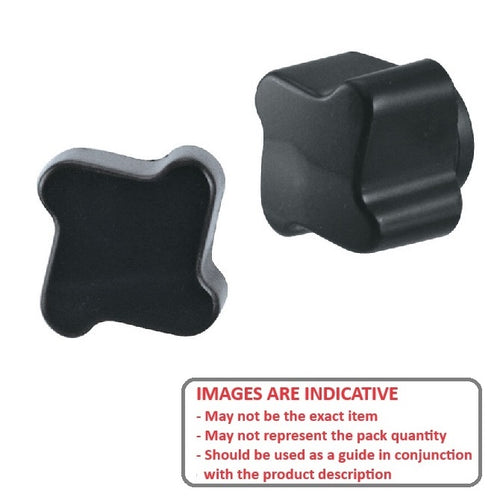

KF127C-080-4LDiagramKF127C-080-4LImage
