KF127C-076-4L-SFT - Datasheet
MBA
Category Information
Knobs - Lobe - Four Lobe - Female - Soft TouchSoft Touch Female Four Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

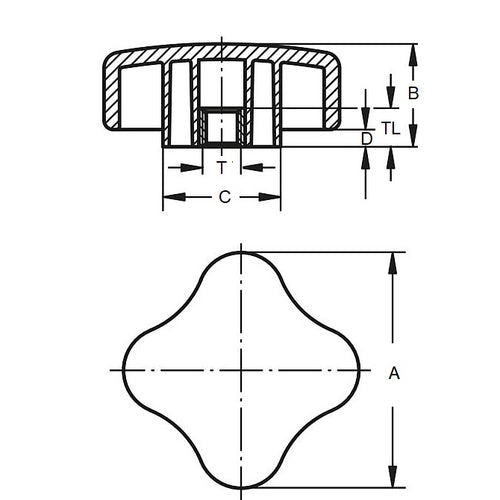

- Thread Size : 1/2-13 UNC (12.7mm)
- Head Diameter (A)
76.20
mm
(Equiv. 3 in.) - Thread Length
15.9
mm
(Equiv. 0.626 in.) - Colour Black
- Hub Diameter (C) 38.10 mm
- Hub Length (D) 5.08 mm
- Knob Height (B) 33.27 mm
- Material Zinc Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- 2454K18
- RK40
- RK-40
