KM127C-066-6L51-SP - Datasheet

MBA

Category Information

Knobs - Lobe - Six Lobe - Male

Male Six Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 66.04 mm
    (Equiv. 2.6 in.)
  • Thread Length 50.8 mm
    (Equiv. 2 in.)
  • Colour Black
  • Hub Diameter (C) 29.97 mm
  • Hub Length (D) 16.00 mm
  • Knob Height (B) 41.91 mm
  • Material Plated Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • RST-74
  • RST74
View full details

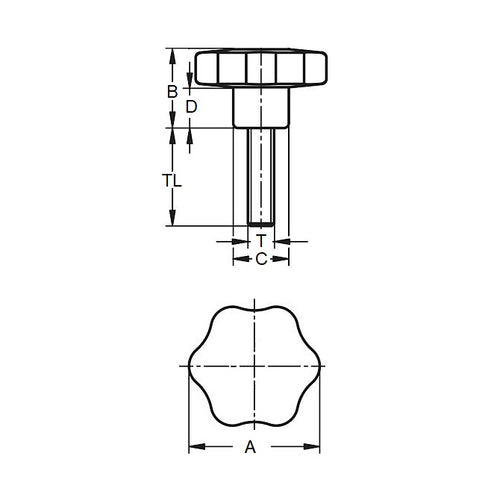

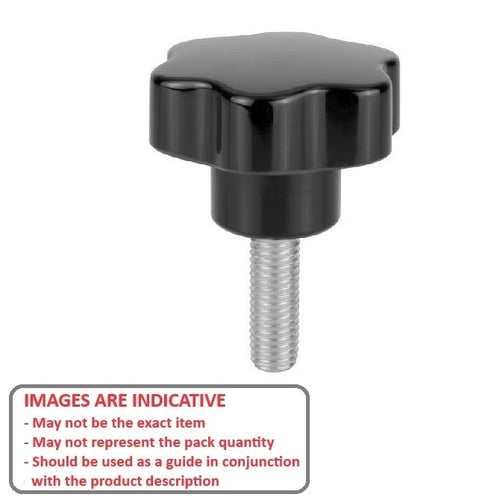

KM127C-066-6L51-SPDiagramKM127C-066-6L51-SPImage
