KM127C-063-5L60-ST - Datasheet
MBA
Category Information

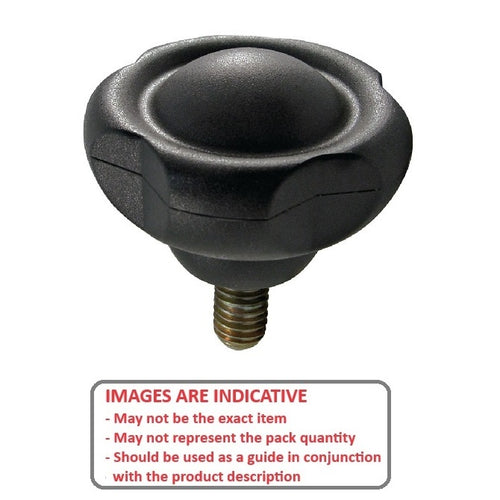

Knobs - Lobe - Five Lobe - Male - ThermoplasticThermoplastic Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)
- Head Diameter (A)
63.00
mm
(Equiv. 2.48 in.) - Thread Length
60.0
mm
(Equiv. 2.362 in.) - Colour Black
- Hub Diameter (C) 35.56 mm
- Hub Length (D) 14.48 mm
- Knob Height (B) 43.94 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- KBP-344
- KBP344
