KF127C-063-3L - Datasheet

MBA

Category Information

Knobs - Lobe - Three Lobe - Female - Standard

Standard Female Three Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 62.99 mm
  • Thread Length 19.1 mm
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 11.94 mm
  • Length (B) 39.12 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® RST-120
  • RST120
View full details

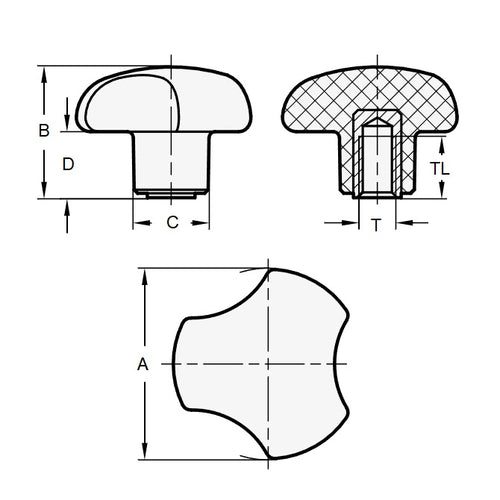

KF127C-063-3LDiagramKF127C-063-3LImage
