Miniature Bearings Australia

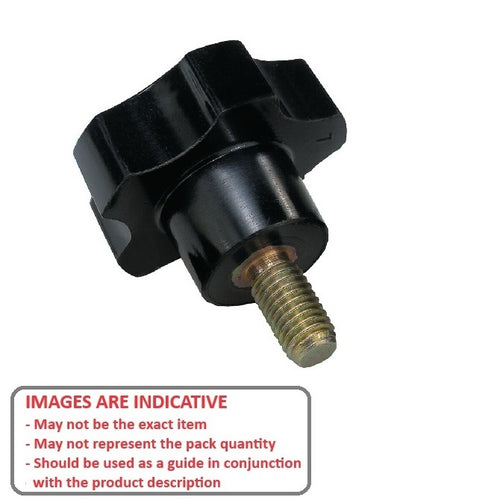

KM127C-060-5L38-ST - Datasheet
MBA
Category Information
Knobs - Lobe - Five Lobe - Male - StandardStandard Male Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)
- Head Diameter (A) 60.00 mm
- Thread Length 38.1 mm
- Colour Black
- Hub Diameter (C) 21.08 mm
- Hub Length (D) 21.08 mm
- Knob Height (B) 37.08 mm
- Material Plated Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHY-585
- KHY585
