KM127C-060-6L32-S4 - Datasheet
MBA
Category Information
Knobs - Lobe - Six Lobe - MaleMale Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)

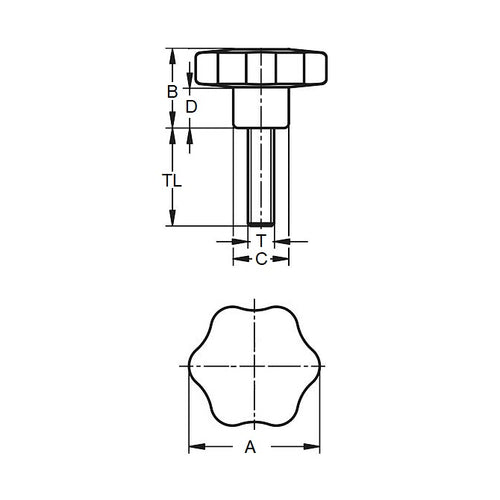

- Head Diameter (A)
60.00
mm
(Equiv. 2.362 in.) - Thread Length
31.8
mm
(Equiv. 1.252 in.) - Colour Black
- Hub Diameter (C) 23.88 mm
- Hub Length (D) 18.03 mm
- Knob Height (B) 27.94 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- JCL203
- JCL-203
