KF127C-060-5L-ST20 - Datasheet

MBA

Category Information

Knobs - Lobe - Five Lobe - Female - Standard

Standard Female Five Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 59.94 mm
    (Equiv. 2.36 in.)
  • Thread Length 20.1 mm
    (Equiv. 0.791 in.)
  • Colour Black
  • Hub Diameter (C) 26.92 mm
  • Hub Length (F) 17.02 mm
  • Knob Height (B) 37.08 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KHY60
  • KHY-60
View full details

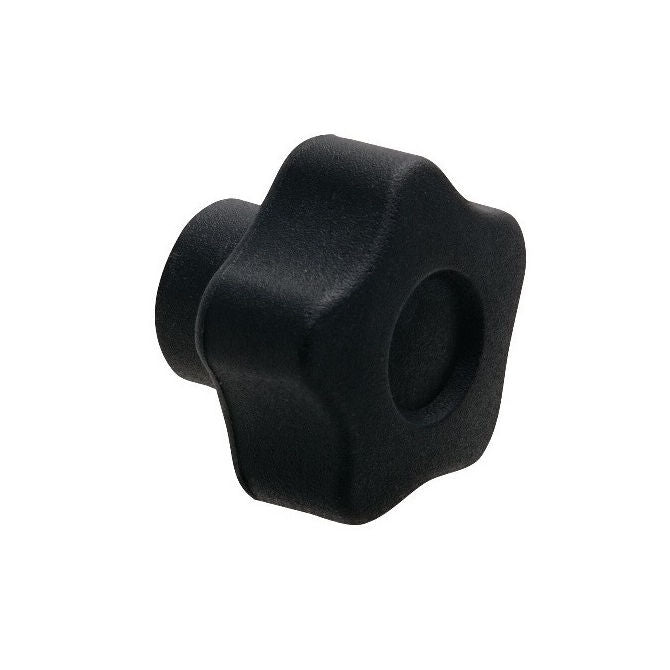

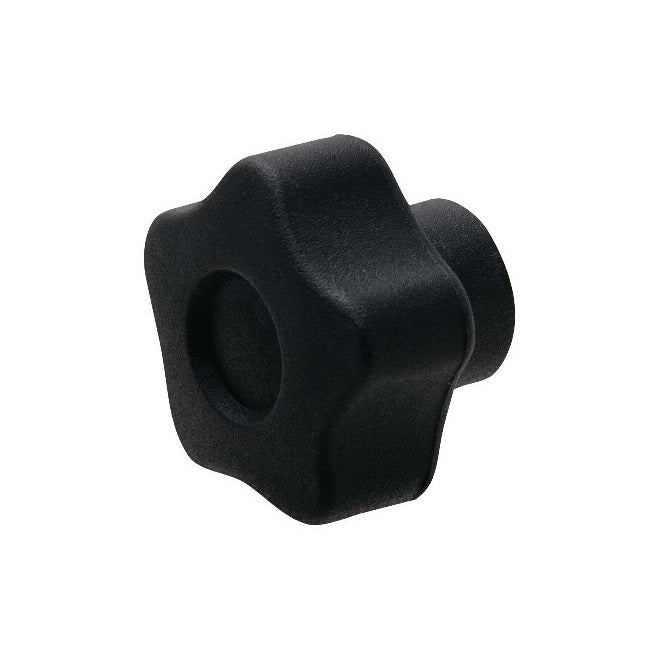

KF127C-060-5L-ST20DiagramKF127C-060-5L-ST20Image
