Miniature Bearings Australia
KF127C-060-6L-PSS - Datasheet
MBA
Category Information

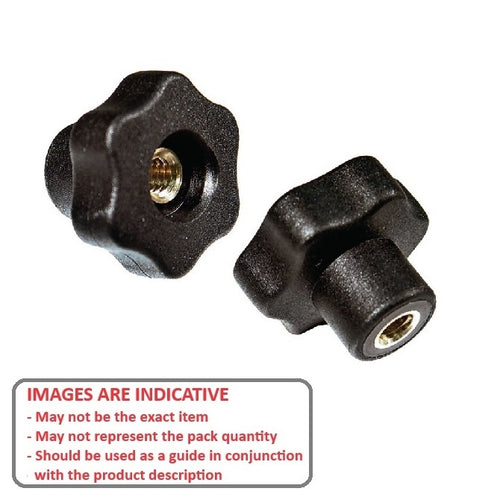

Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data

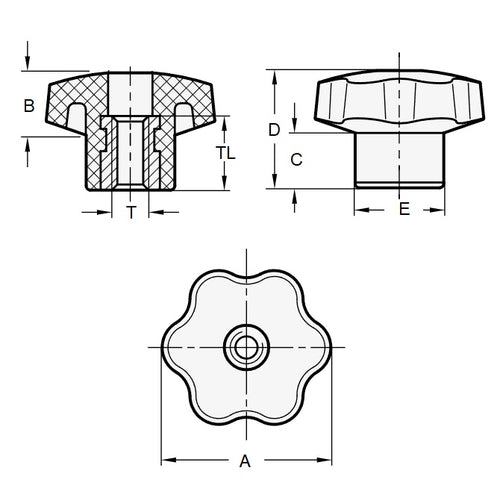

- Thread Size : 1/2-13 UNC (12.7mm)
- Head Diameter (A) 59.94 mm
- Thread Length 19.1 mm
- Colour Black
- Hub Diameter (E) 23.88 mm
- Hub Length (C) 18.03 mm
- Knob Height (D) 33.02 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® JCL-187
- JCL187
