Miniature Bearings Australia
KF127C-060-6L-PBR - Datasheet
MBA
Category Information

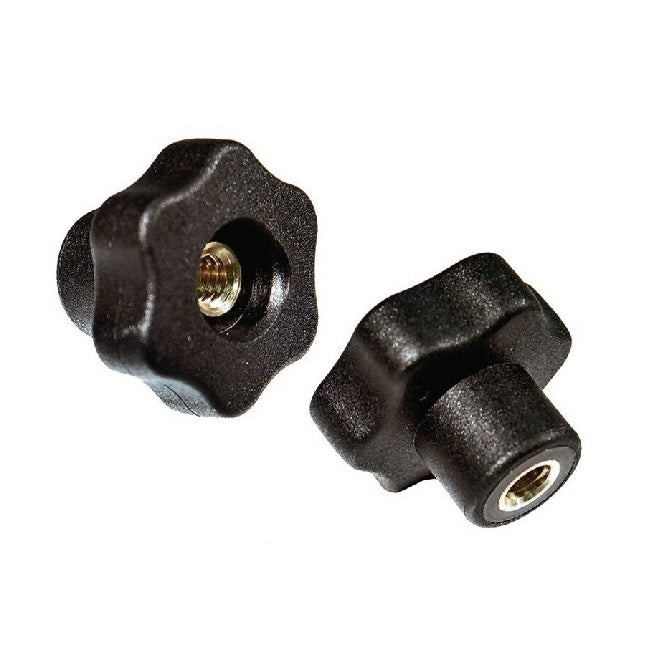

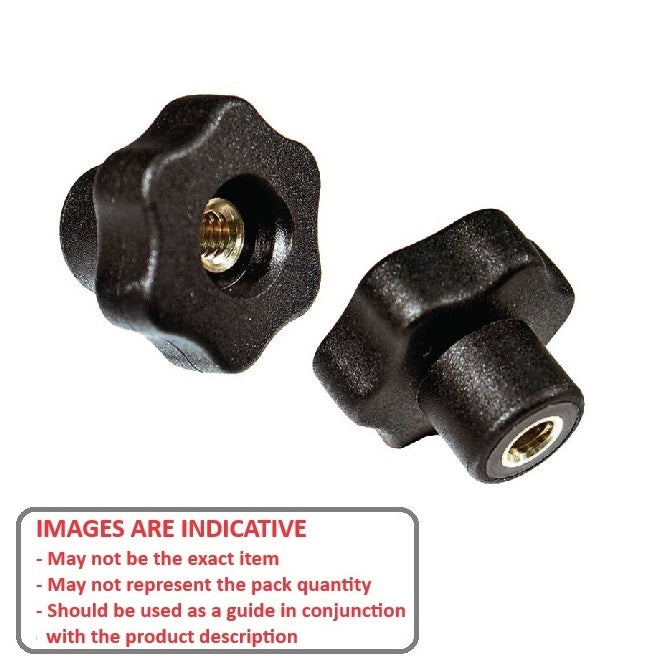

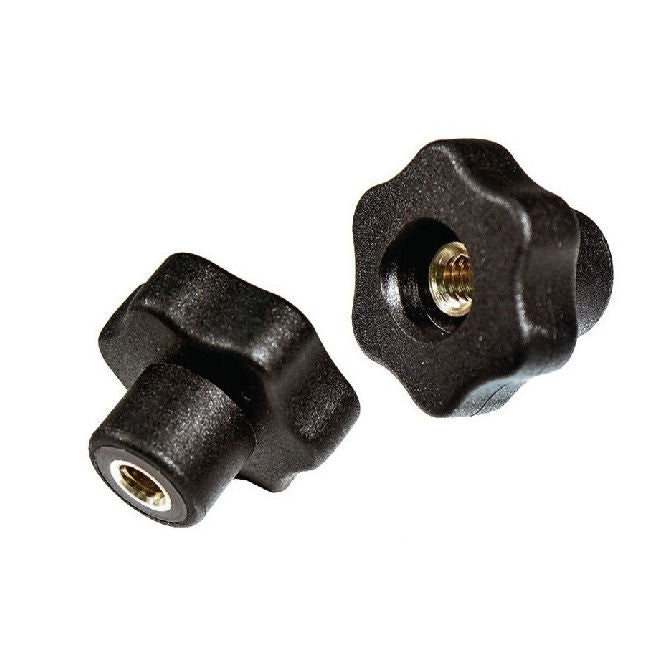

Knobs - Lobe - Six Lobe - Female - Through HoleThrough Hole Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)

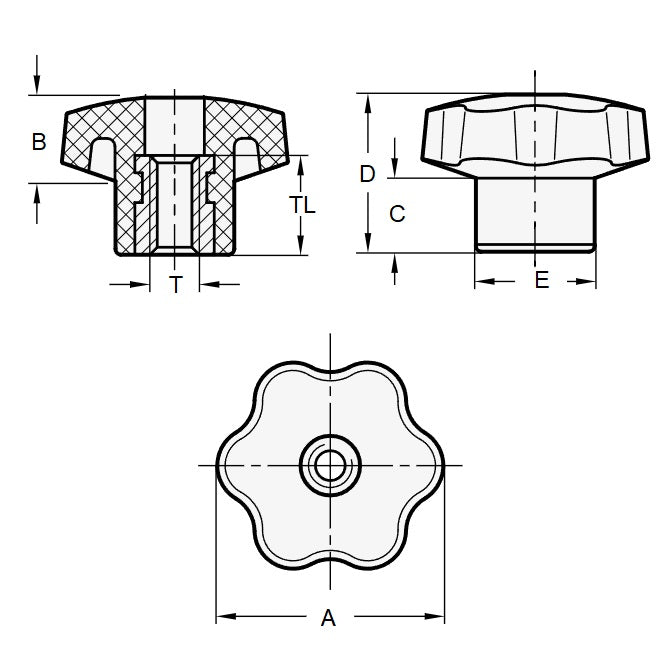

- Head Diameter (A)
59.94
mm
(Equiv. 2.36 in.) - Thread Length
19.1
mm
(Equiv. 0.752 in.) - Colour Black
- Hub Diameter (E) 23.88 mm
- Hub Length (C) 18.03 mm
- Knob Height (D) 33.02 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL83
- JCL-83
