KF127C-060-4L-P - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Through Hole

Through Hole Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 59.94 mm
  • Thread Length 19.1 mm
  • Colour Black
  • Hub Diameter (E) 23.11 mm
  • Hub Length (C) 13.97 mm
  • Knob Height (D) 38.10 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Reid Tool® JCL-175
  • JCL175
View full details

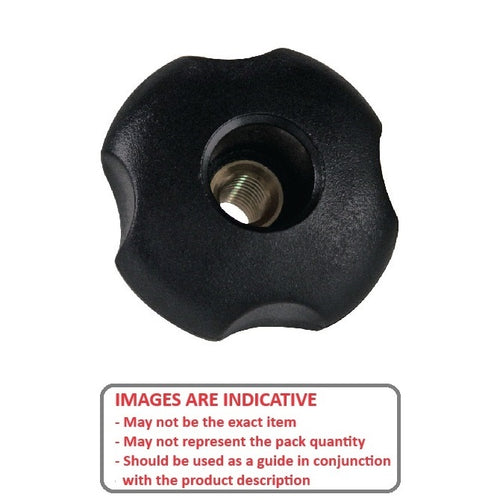

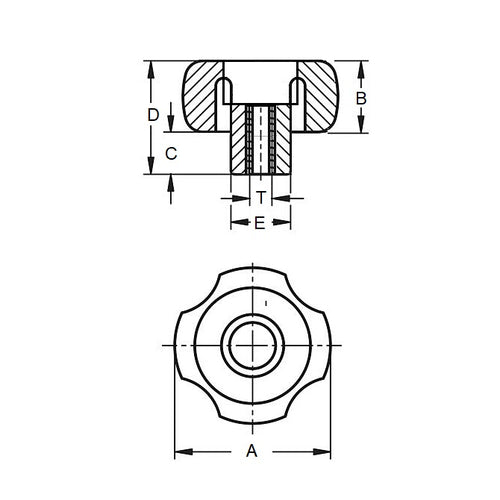

KF127C-060-4L-PDiagramKF127C-060-4L-PImage
