KF127C-060-4L - Datasheet

MBA

Category Information

Knobs - Lobe - Four Lobe - Female - Standard

Standard Female Four Lobe Lobe Knobs. Also see star knobs

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thread Size : 1/2-13 UNC (12.7mm)
  • Head Diameter (A) 59.94 mm
    (Equiv. 2.36 in.)
  • Thread Length 19.1 mm
    (Equiv. 0.752 in.)
  • Colour Black
  • Hub Diameter (C) 23.11 mm
  • Hub Length (D) 13.97 mm
  • Knob Height (B) 38.10 mm
  • Material Brass
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • JCL115
  • JCL-115
View full details

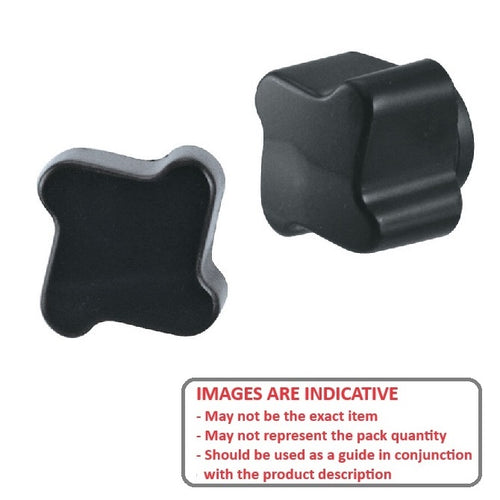

KF127C-060-4LDiagramKF127C-060-4LImage
