KF127C-060-5L-BR17 - Datasheet
MBA
Category Information

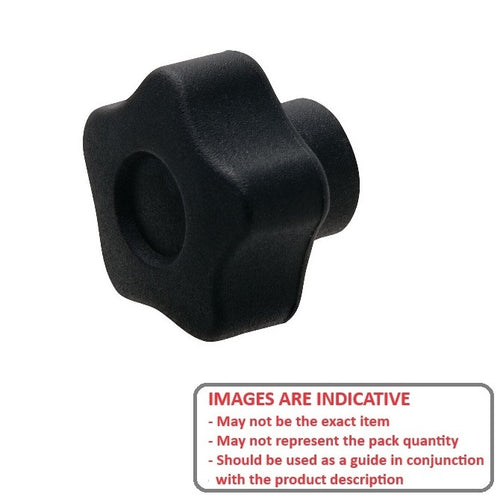

Knobs - Lobe - Five Lobe - Female - StandardStandard Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)

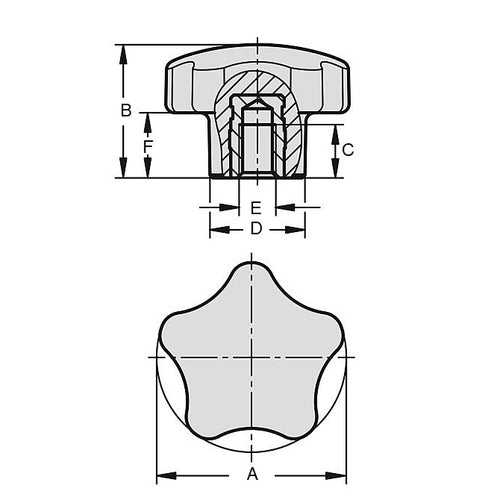

- Head Diameter (A)
59.94
mm
(Equiv. 2.36 in.) - Thread Length
17.0
mm
(Equiv. 0.669 in.) - Colour Black
- Hub Diameter (C) 21.08 mm
- Hub Length (F) 21.08 mm
- Knob Height (B) 37.08 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- KHY-550
- KHY550
