KF127C-057-5LSFT-P - Datasheet
MBA
Category Information

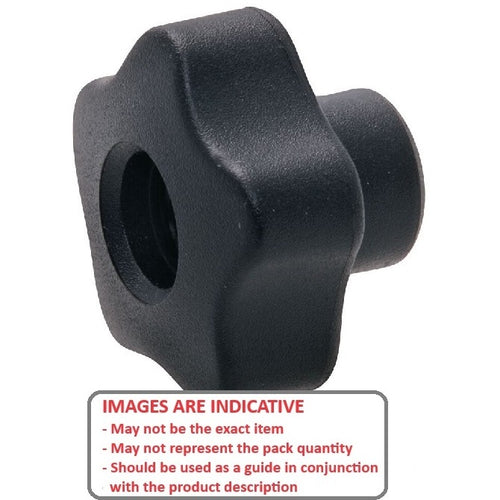

Knobs - Lobe - Five Lobe - Female - Soft Touch -Through HoleSoft Touch -Through Hole Female Five Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)

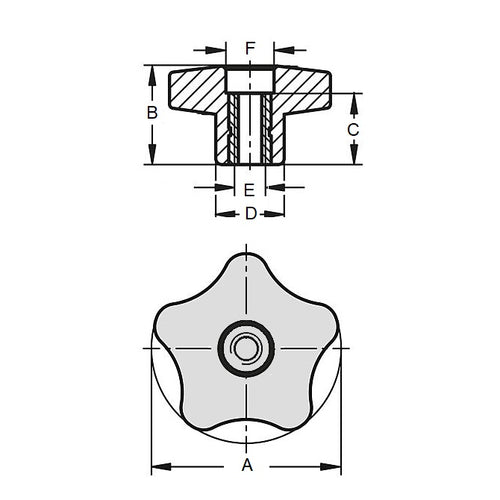

- Head Diameter (A)
57.40
mm
(Equiv. 2.26 in.) - Colour Black
- Hub Diameter (C) 31.75 mm
- Hub Length (D) 4.06 mm
- Knob Height (B) 27.69 mm
- Material Plated Brass
Product Compliance and Data
Additional Resources
Cross References
- RK-13
- RK13
