NT127C-WC-MI - Datasheet

MBA

Category Information

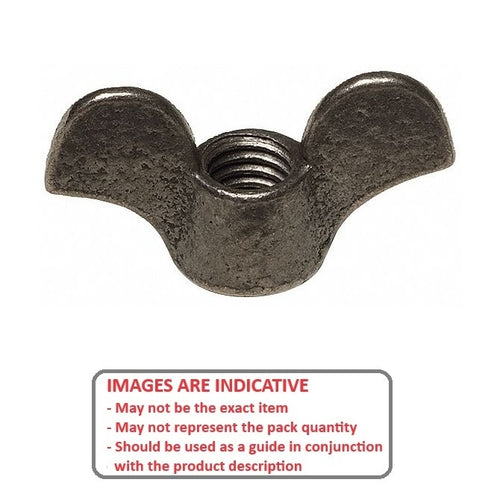

Nuts - Wing - Malleable Iron - Style C

Style C Malleable Iron Wing Nuts. Malleable iron with a tumbled finish.

    Product Data

    • Thread Size : 1/2-13 UNC (12.7mm)
    • Overall Length (A) 57.15 mm
      (Equiv. 2.25 in.)
    • Base Diameter (B) 30.140 mm
      (Equiv. 1.187 in.)
    • Overall Height (C) 25.400 mm
    • Material Iron
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • MIN-15
    • MIN15
    View full details
    NT127C-WC-MIDiagramNT127C-WC-MIImage
