KM127C-050-NG-SS - Datasheet
MBA
Category Information

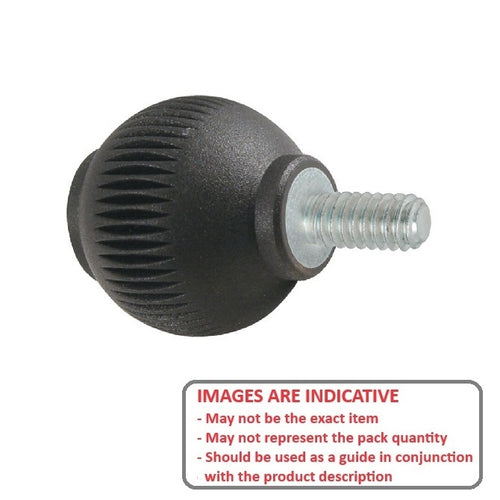

Knobs - Ball - Male Threaded - Novo-GripNovo-Grip Male Threaded Ball Knobs. Ergonomic Shape for easy gripping
- An expanded range may be available on special order. Please enquire.
- Unique styling for a very distinctive look
- Belt fluting for non-slip gripping
- Black thermoplastic with steel or stainless steel studs
Product Data

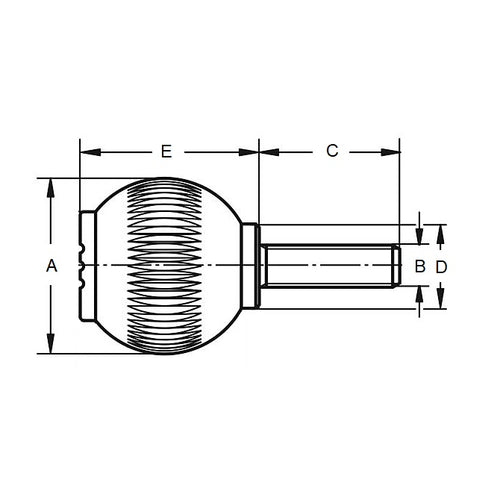

- Thread Size : 1/2-13 UNC (12.7mm)
- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Thread Length (C)
39.9
mm
(Equiv. 1.571 in.) - Base Diameter (D) 23.88 mm
- Body Height (E) 50.8 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- GK735
- GK-735
