KF127C-050-6L-BR - Datasheet
MBA
Category Information

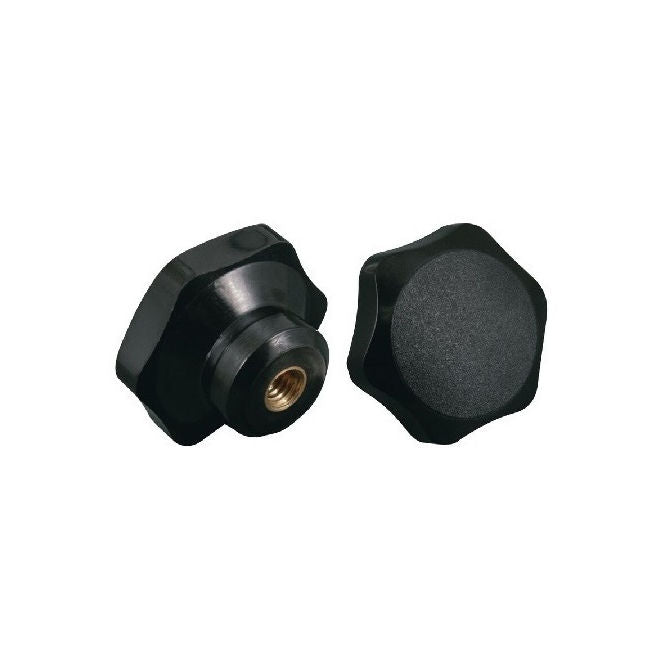

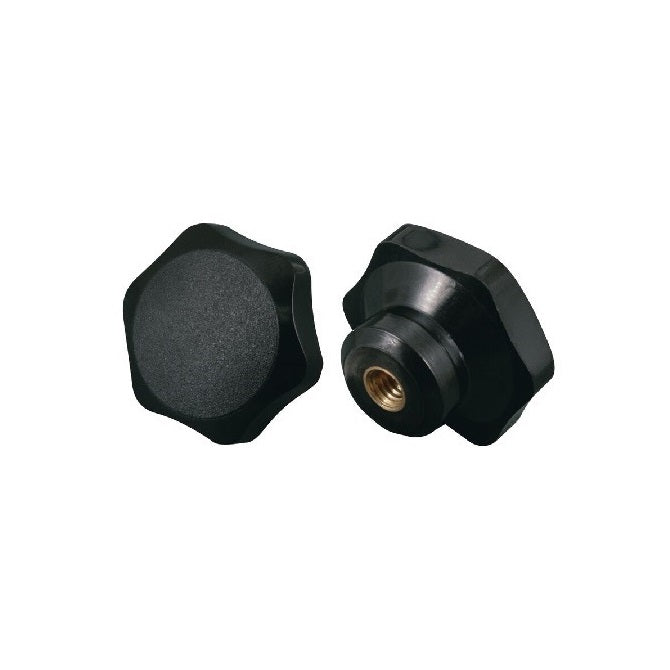

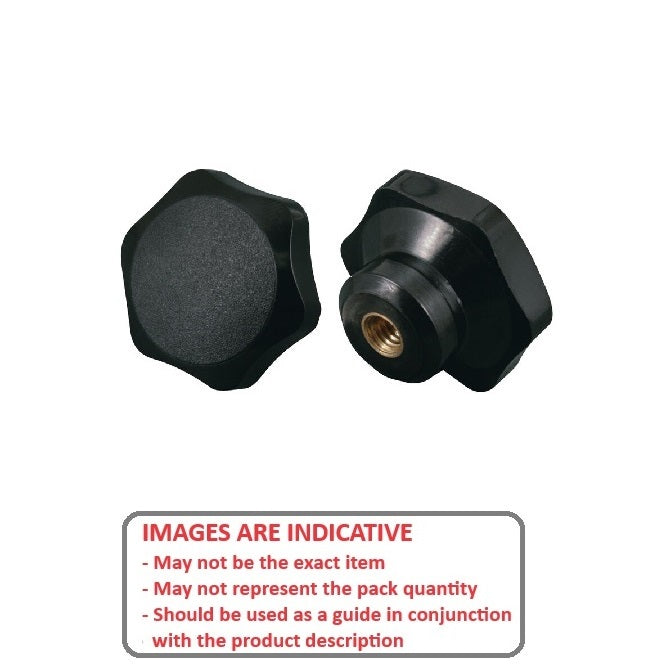

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : 1/2-13 UNC (12.7mm)

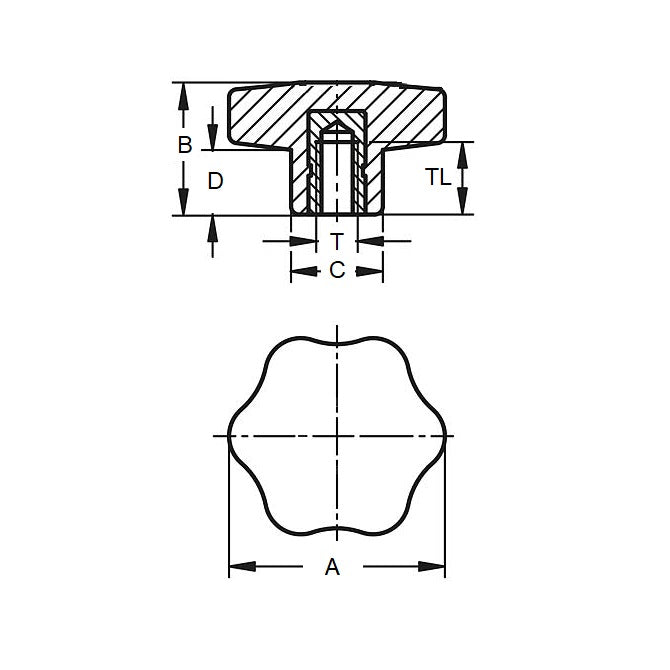

- Head Diameter (A)
50.04
mm
(Equiv. 1.97 in.) - Thread Length
19.1
mm
(Equiv. 0.752 in.) - Colour Black
- Hub Diameter (C) 20.07 mm
- Hub Length (F) 14.48 mm
- Knob Height (B) 28.45 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- JCL-71
- JCL71
