KF127C-048-TRT - Datasheet
MBA
Category Information

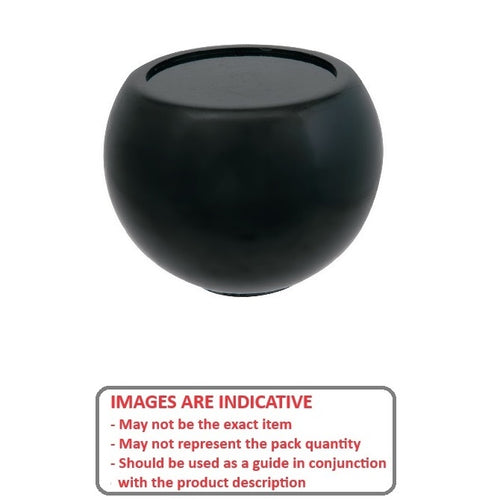

Knobs - Ball - Female Threaded - Recessed TopRecessed Top Female Threaded Ball Knobs. Brass threaded insert
- An expanded range may be available on special order. Please enquire.
- Phenolic
Product Data
- Thread or Hole Size : 1/2-13 UNC (12.7mm)

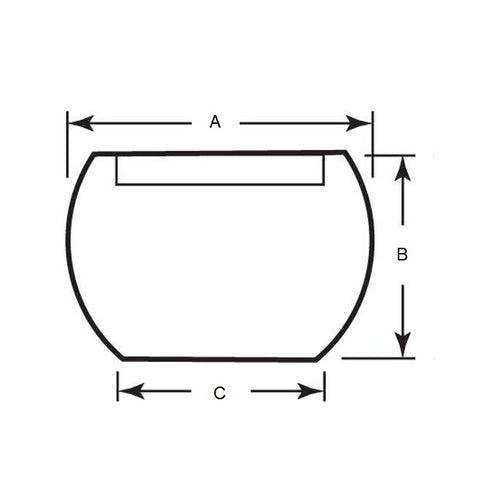

- Head Diameter (A)
47.63
mm
(Equiv. 1.875 in.) - Thread Depth
15.9
mm
(Equiv. 0.626 in.) - Height (B) 37.31 mm
- Top Diameter (C) 19.05 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- DK-770
- DK770
