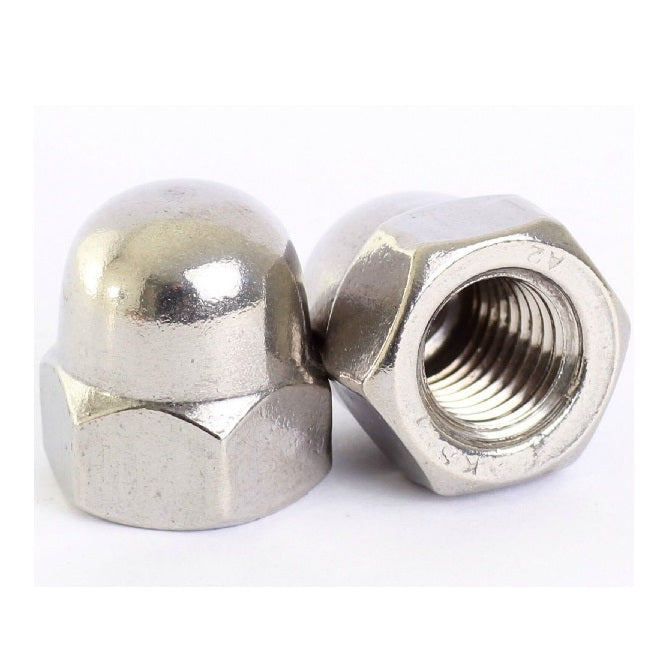

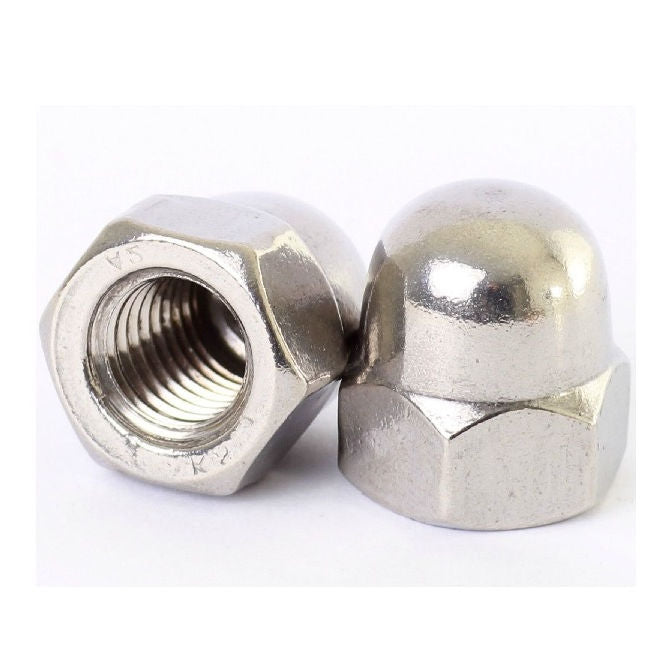

NT127C-DM-S4 - Datasheet

Brighton Best

Product Data

• Thread Size : 1/2-13 UNC (12.7mm)
• Material 304 Stainless
• Height (B) 23.81 mm
• Across Flats (A) 22.22
• Pitch 1.954 mm
• Threads Per Inch 13 TPI
• Material Stainless Steel 304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best® 761048
• 91855A480
• Reid Tool® MAN-12
• MAN12
