SUS714RS - Datasheet

MBA

Category Information

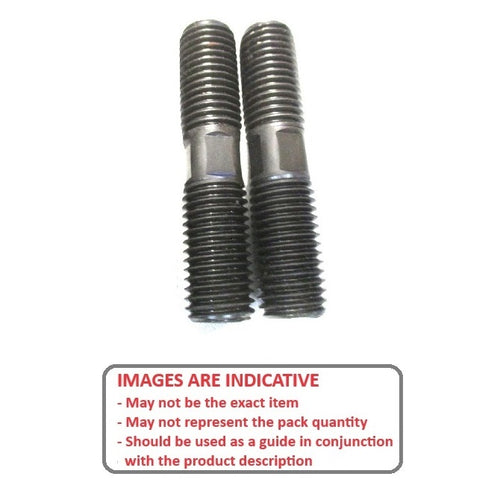

Threaded Rod - Driver Studs

Driver Studs Threaded Rod. Medium carbon steel with black oxide finish.

  • Threaded metal rods that have threads on both ends, used as a specialized type of fastener.
  • Used in applications such as engines to join components like gaskets and covers, acting as guide pins for alignment and providing consistent clamping loads.
  • With wrench flats in the centre.
  • Tensile strength 125,000 PSI (minimum)

Product Data

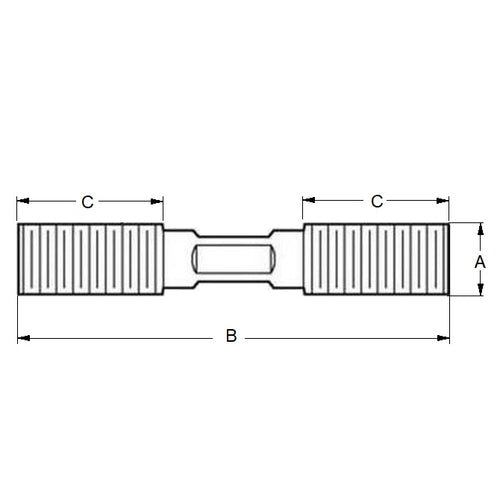

  • Thread : 1/2-13 UNC (12.7mm)
  • Length (B) 203.20 mm
    (Equiv. 8 in.)
  • Thread Length (C) 38.10
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SUS-714
    • SUS714
