SUS709RS - Datasheet
MBA
Category Information

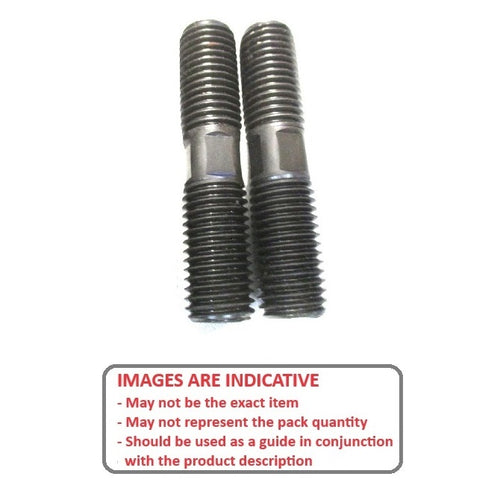

Threaded Rod - Driver StudsDriver Studs Threaded Rod. Medium carbon steel with black oxide finish.
- Threaded metal rods that have threads on both ends, used as a specialized type of fastener.
- Used in applications such as engines to join components like gaskets and covers, acting as guide pins for alignment and providing consistent clamping loads.
- With wrench flats in the centre.
- Tensile strength 125,000 PSI (minimum)
Product Data

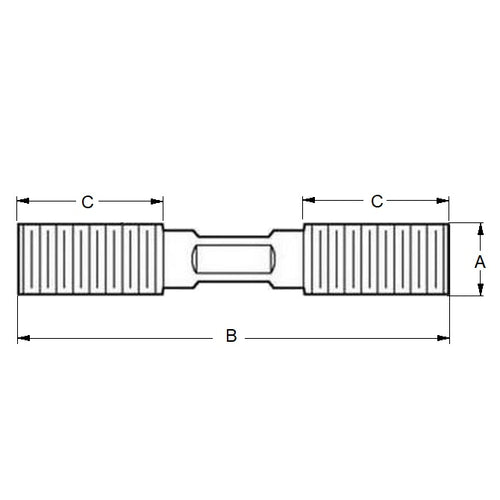

- Thread : 1/2-13 UNC (12.7mm)
- Length (B)
139.70
mm
(Equiv. 5.5 in.) - Thread Length (C) 38.10
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- SUS-709
- SUS709
