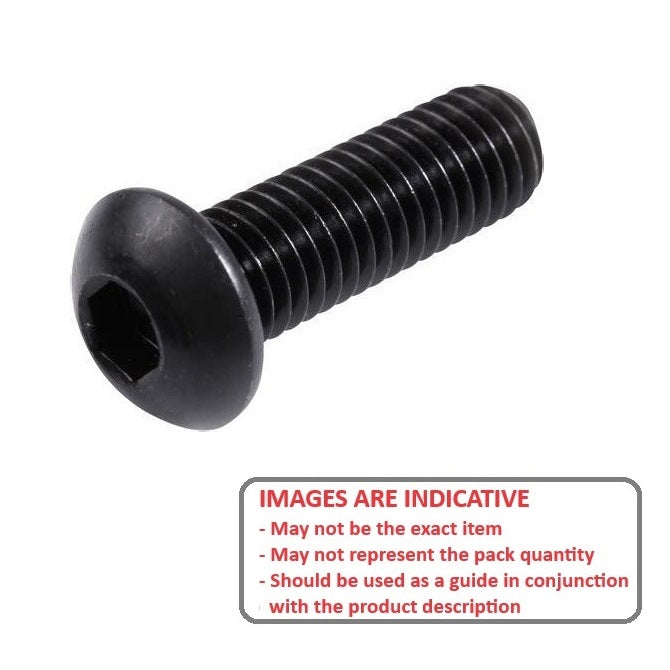

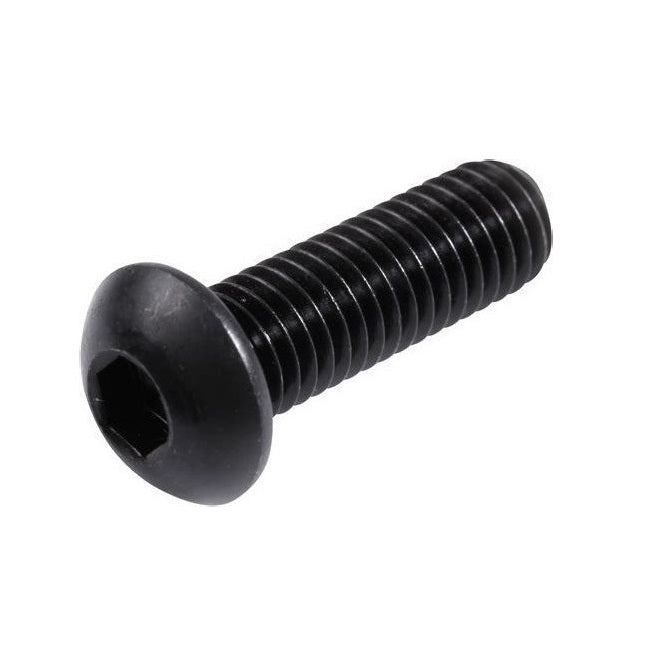

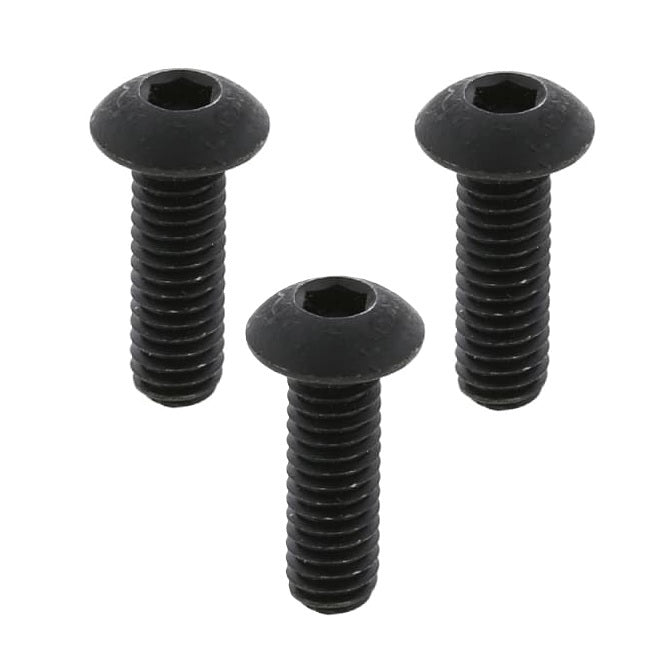

SC127W-045-B-SK-C - Datasheet
Brighton Best
Category Information
Screws - Button - Socket - Alloy SteelAlloy Steel Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : 1/2-12 BSW (12.7mm)
- Thread Length (L)
44.5
mm
(Equiv. 1.752 in.) - Material Alloy Steel
- Max Head Diameter 22.2 mm
- Max Head Height 6.7 mm
- Hex Key (D) 7.94 (5/16) mm
- Pitch 2.117 mm
- Threads Per Inch 12 TPI
- Material Steel Alloy
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 817197
