NT127W-HX-CZ - Datasheet

MBA

Category Information

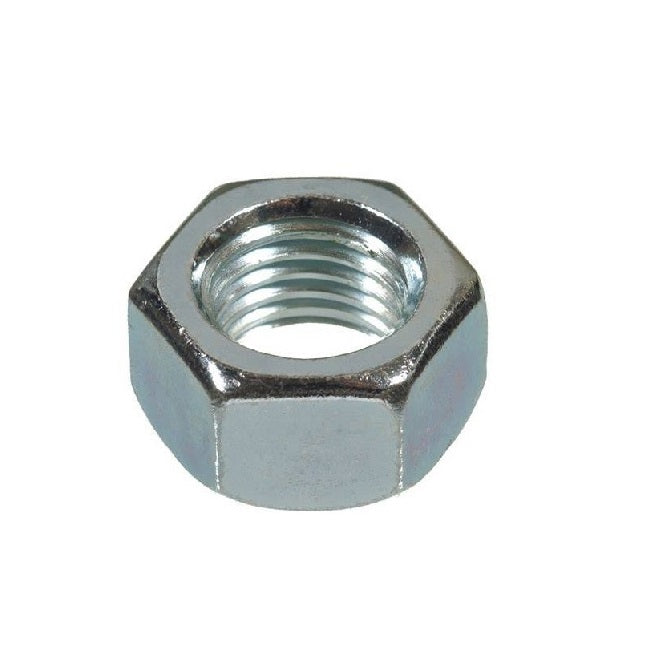

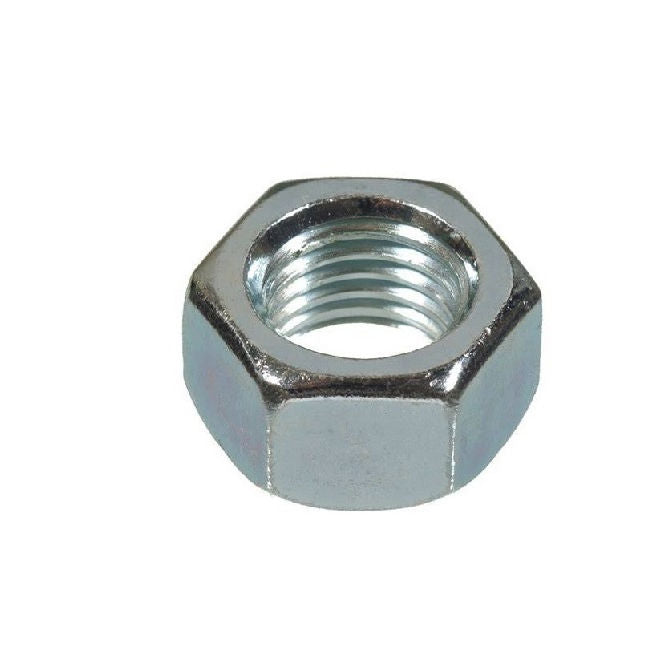

Nuts - Hexagonal - Full - Steel

Steel Full Hexagonal Nuts. UNC - UNF - BA - METRIC. Plain and Zinc Plated.

  • An expanded range may be available on special order. Please enquire.
  • Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
  • If the A and H dimensions are critical for your application please consult us prior to ordering.

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size : 1/2-12 BSW (12.7mm)
  • Thickness (H) 11 mm
    (Equiv. 0.433 in.)
  • Across Flats (A/F) 21.00 mm
    (Equiv. 0.827 in.)
  • Type Standard
  • Pitch 2.117 mm
  • Threads Per Inch 12 TPI
  • Material Steel - Zinc Plated
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • Hitech MSHNZP12
