W0012-F-004-005-S2 - Datasheet

MBA

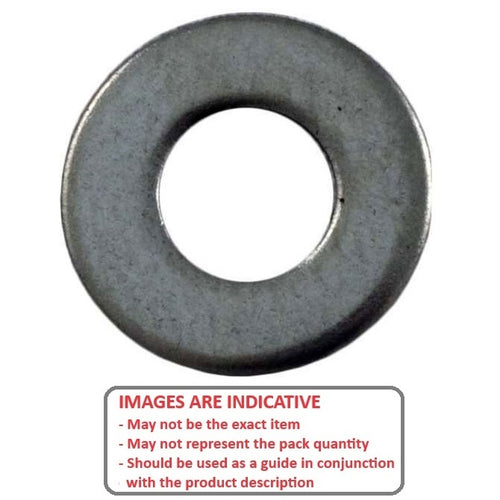

304 Stainless Steel Commercial Flat Washers. Stainless Steel 304 grade flat washers selection

Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.
Dimensions are nominal.
Please note! Tolerances for commercial grade washers are much larger than for precision washers.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

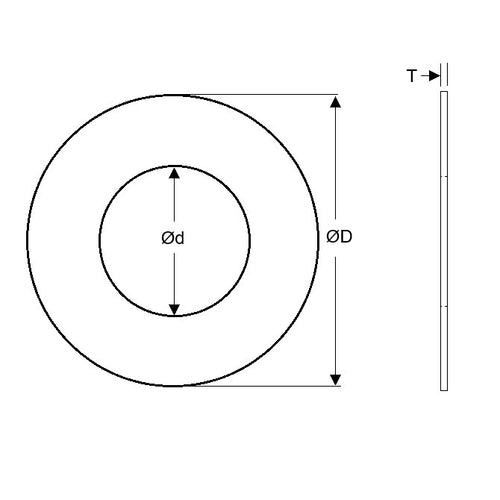

Nominal Inside Diameter (d) : 1.19 mm _{ASME / ANSI B18.22.1}
(Equiv. 0.047 in.)
Nominal Outside Diameter (D) 4.20 mm _{ASME / ANSI B18.22.1}
(Equiv. 0.165 in.)
Thickness (T) 0.53 mm _{ASME / ANSI B18.22.1}
(Equiv. 0.021 in.)
Other To Suit 00 UN Screw
Actual ID (Ref) 1.52 mm
Material Stainless Steel 302/304 (Similar to A2, 18-8)

Country of Origin: US
