PUI012-0191-033-A - Datasheet
MBA
Category Information
Pulleys - U Groove Idler - Single Row - Plastic With Plain BorePlastic With Plain Bore Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks

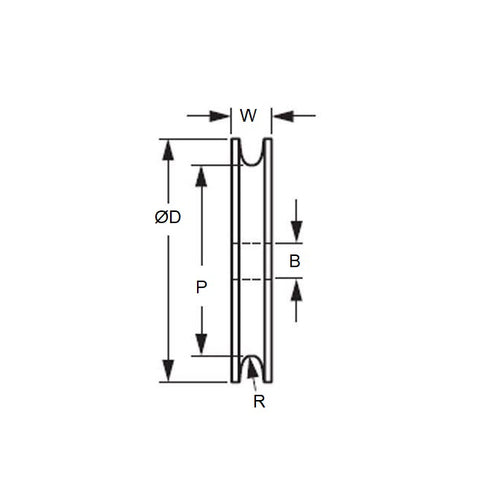

Product Data
- Maximum Cable Diameter (H)
:
1.19
mm
+/- 0.127
(Equiv. 0.047 in.) - Outside Diameter (OD) 19.05 mm
- Bore (B) 3.251 mm
- Overall Width (OAL) 3.962
- Dia. to Base of Groove (P) 15.88 mm
- Type Plain Bearing - Light Duty
- Groove Radius (R) 0.64
- Material Acetal - Black
Product Compliance and Data
Additional Resources
Cross References
- 3434T33
- Reid Tool® CBL-840
- A6M9-01204
- A6M901204
- CBL840
