Miniature Bearings Australia
PUI012-0127-033-A - Datasheet
MBA
Category Information

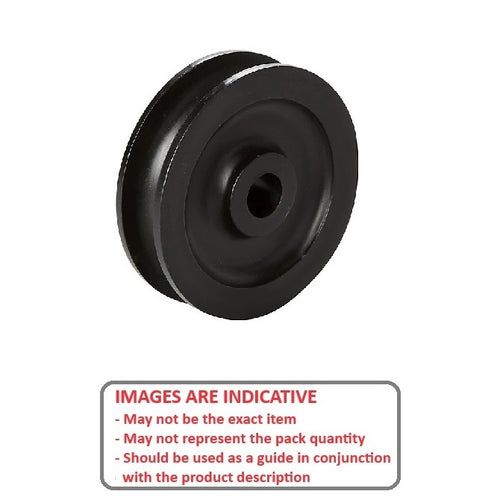

Pulleys - U Groove Idler - Single Row - Plastic With Plain BorePlastic With Plain Bore Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Rounthane or O-Rings
Product Data

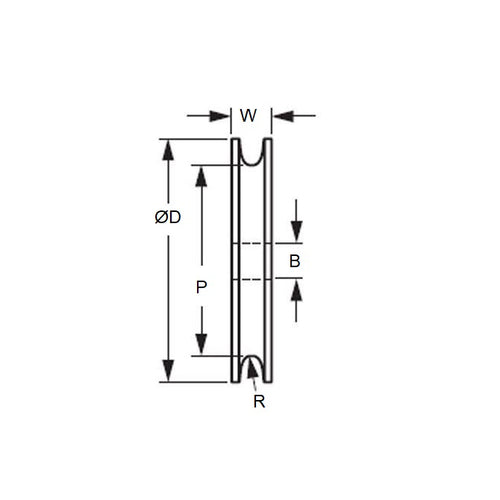

- Maximum Cable Diameter (H)
:
1.19
mm
+/- 0.127
(Equiv. 0.047 in.) - Outside Diameter (OD)
12.70
mm
(Equiv. 0.5 in.) - Bore (B)
3.251
mm
(Equiv. 0.128 in.) - Overall Width (OAL) 3.175
- Dia. to Base of Groove (P) 11.05 mm
- Type Plain Bearing - Light Duty
- Groove Radius (R) 0.64
- Material Acetal - Black
Product Compliance and Data
Additional Resources
Cross References
- A6M9-00804
- A6M900804
- CBL820
- CBL-820
