Miniature Bearings Australia
PUI012-0127-032-ZB - Datasheet
MBA
Category Information

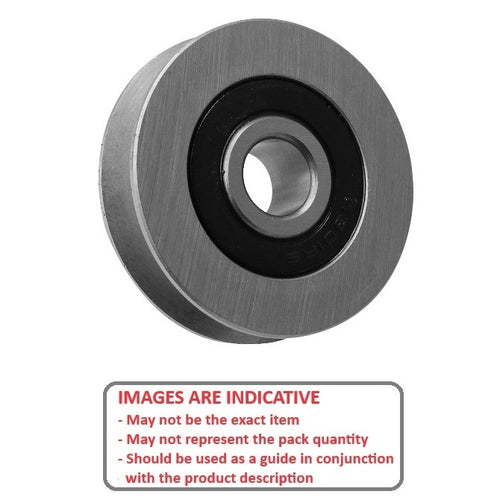

Pulleys - U Groove Idler - Single Row - SteelSteel Single Row U Groove Idler Pulleys. Steel with Steel Ball Bearings
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks

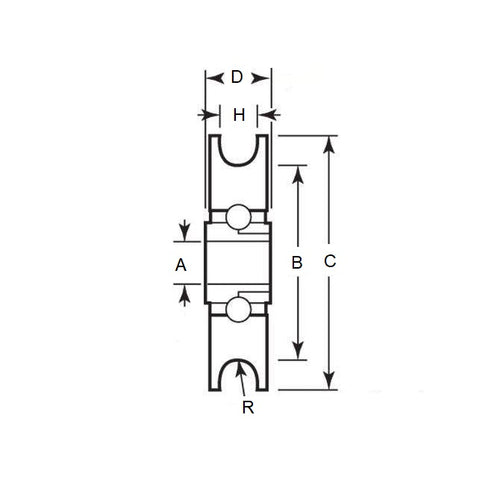

Product Data
- Maximum Cable Diameter (H) : 1.19 mm
- Outside Diameter (OD) 12.70 mm
- Bore (A) 3.175 mm
- Body Width 3.97 mm
- Overall Width (OAL) 4.76
- Dia. to Base of Groove (B) 9.53 mm
- Type Unground Open Ball Bearing - Hardened Raceway - Heavy Duty
- Groove Radius (R) 0.64
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CBL-910
- CBL910
