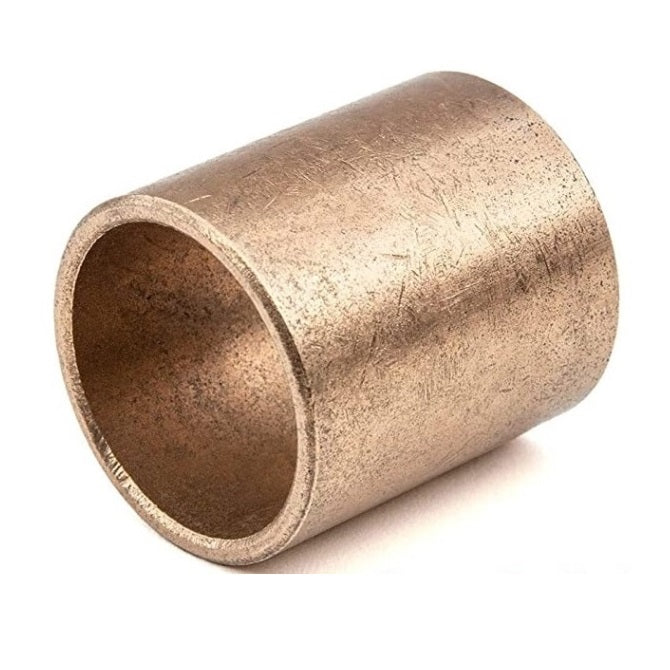

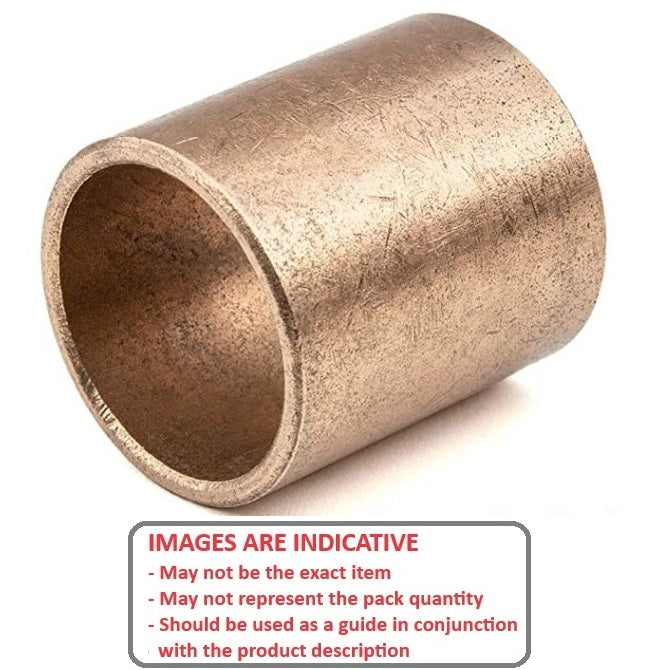

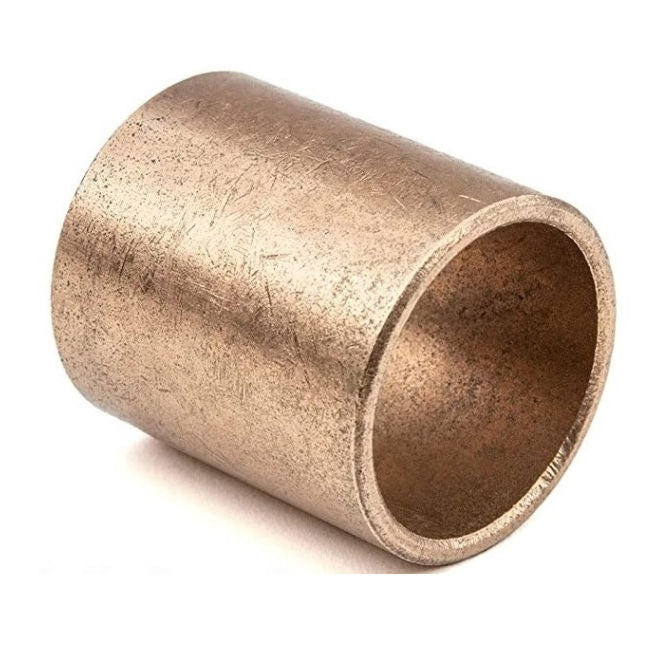

BP0012-0048-0020-BSLU - Datasheet

MBA

Product Data

• Nominal Inside Diameter (d) : 1.191 mm _{+ 0.000 / + 0.010}
  (Equiv. 0.047 in.)
• Nominal Outside Diameter (D) 4.763 mm _{+ 0.003 / - 0.010}
  (Equiv. 0.188 in.)
• Length (s) 1.984 mm _{+ 0 / - 0.127}
  (Equiv. 0.078 in.)
• Material Bronze SAE 841 Sintered

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Bushes PDF Catalogue


• Measuring Small Parts
• Metalworking Resource Guide

• DU Bush Material Information
• General Bushes Catalogue
• Sintered Bronze Products Catalogue
• Solid Bronze Bushes catalogue

Cross References

• S99BP3-PB031205
• S99BP3PB031205
• BP001200480020BS
