TH-021 - Datasheet

MBA

Category Information

Cable Attachments - Thimbles - Stainless

Stainless Thimbles Cable Attachments. 316 Stainless Steel. Use with synchromesh cable or standard miniature cable. Use with synchromesh or standard miniature cable

  • Thimbles provide loop support at higher loads and protect cables from wear when motion is present.
  • Some thimbles may have open or uneven ends.

Product Data

  • Suitable cable diameter : 1.19 - 1.98 mm
    (Equiv. 0.047 in.)
  • OAL (B+C+F) 23.813 mm
    (Equiv. 0.938 in.)
  • Inside Width (A) 8.611 mm
    (Equiv. 0.339 in.)
  • D Dimension 3.175 mm
  • E Dimension 0.813 mm
  • F Dimension 1.984 mm
  • Suits Synchromesh Cable SM-CBL-02.06x03.81 and SM-CBL-02.59x05.08
  • B Dimension 17.066
  • C Dimension 4.762
  • Material Stainless Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • CBL510
    • CBL-510
    • A6C9MT047
    View full details

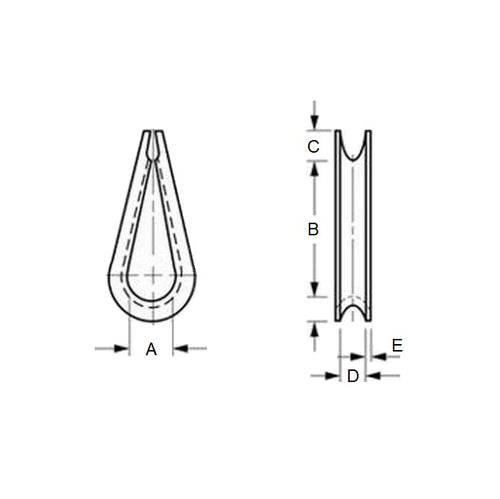

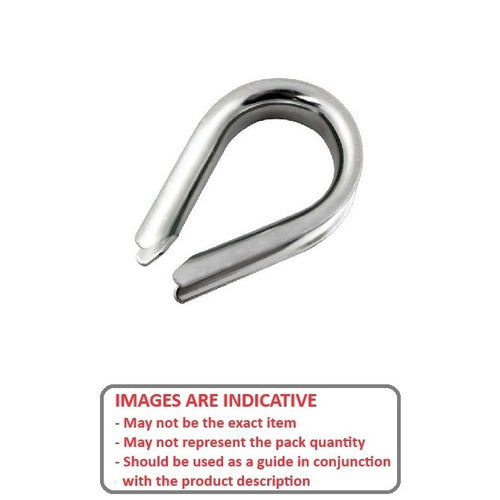

    TH-021DiagramTH-021Image
