AR103RS - Datasheet
MBA
Category Information

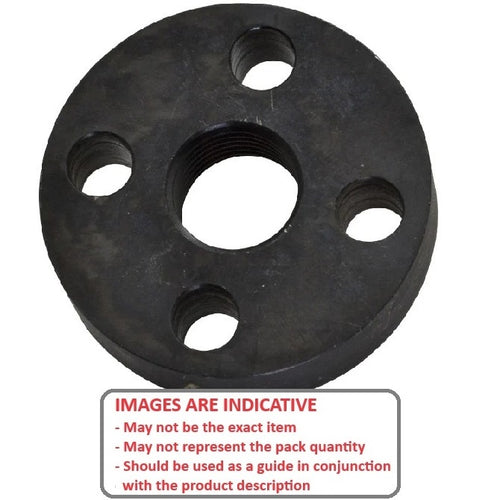

Leadscrew - Nut Flanges - For Acme NutsFor Acme Nuts Nut Flanges Leadscrew. Flanges for Acme leadscrew thread nuts imperial
- An expanded range may be available on special order. Please enquire.
- These flanges are screwed onto the outer thread of the red leadscrew nuts
- This provides a mounting surface to enable location of the leadscrew nut on the surface to be moved

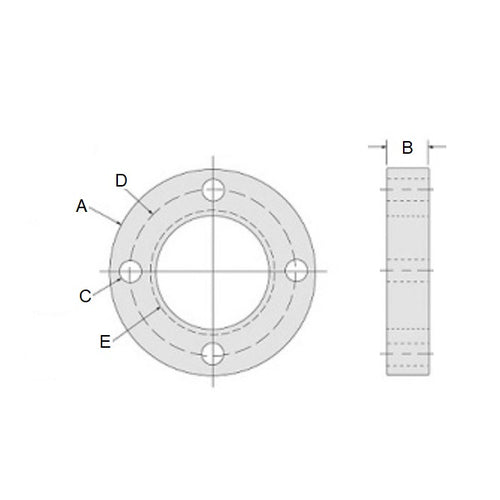

Product Data
- Suitable Nut Mounting Thread : 1-18 (25.4mm)
- Flange OD
66.040
mm
(Equiv. 2.6 in.) - Flange Thickness
13.462
mm
(Equiv. 0.53 in.) - Mounting Hole Diameter 53.086 mm
Product Compliance and Data
Additional Resources
Cross References
- AR103
- AR-103
