CBLC-117-304-NY-77 - Datasheet
MBA
Category Information

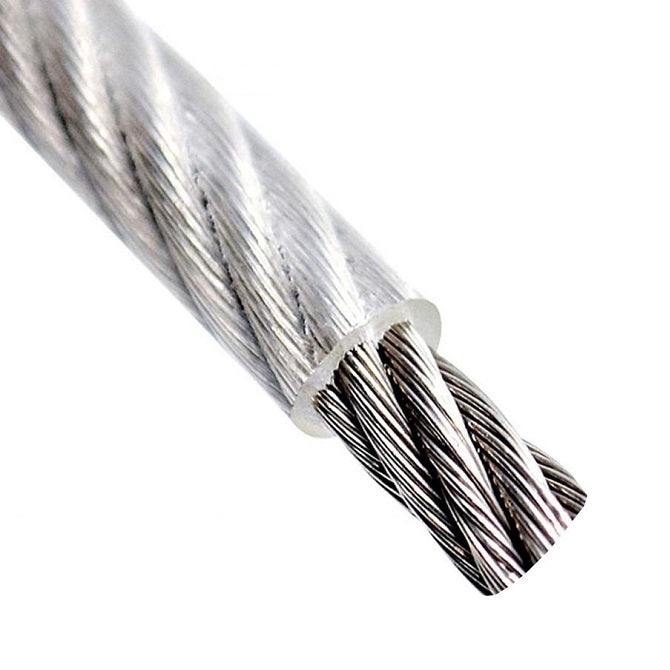

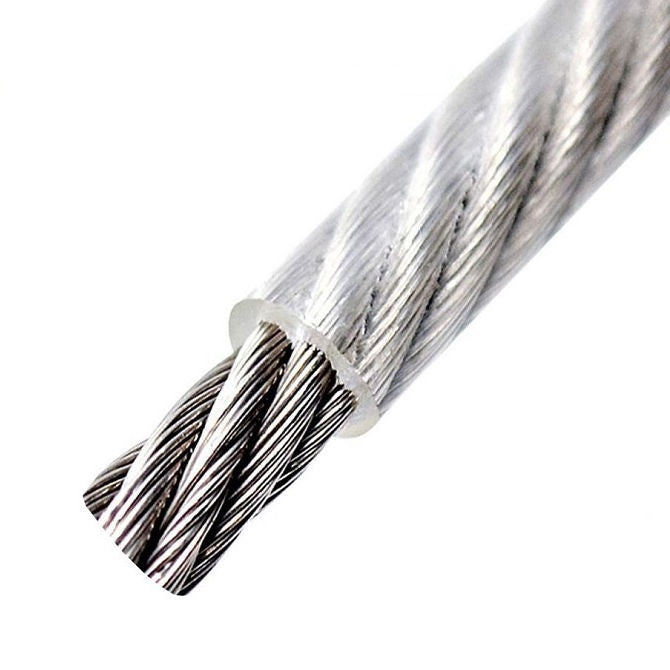

Cable and Accessories - Cable - Miniature - CoatedCoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)
- An expanded range may be available on special order. Please enquire.
- Recommended that nylon coating is stripped prior to swaging.
- Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
- Also called bowden cable.
Product Data

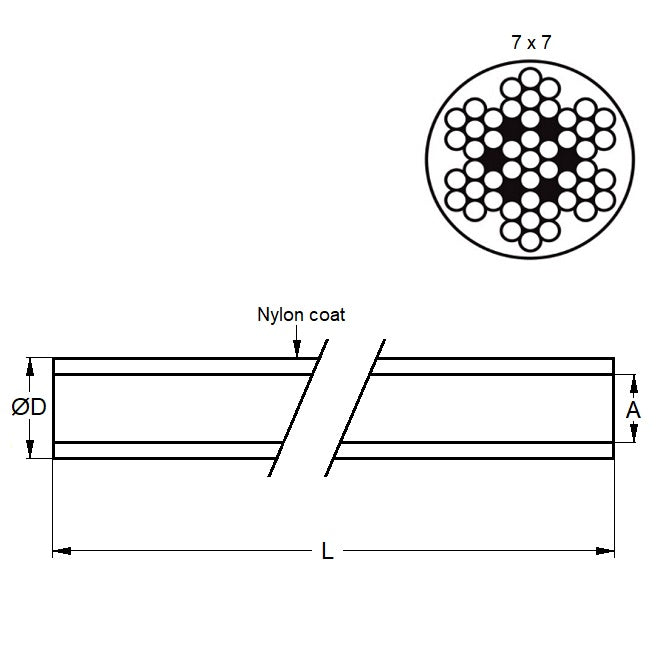

- Overall Diameter
:
1.17
mm
(Equiv. 0.046 in.) - Cable Diameter (A)
0.914
mm
(Equiv. 0.036 in.) - Breaking Strength 68.0 kg
- Length 30 Mtr Roll
- Coating Clear Nylon
- Strand Type 7x7
- Material Clear Nylon over 304 Stainless
Product Compliance and Data
Additional Resources
Cross References
- CBL-1210
- CBL1210
