DVT1-1232-HCH - Datasheet

MBA

Category Information

Dual Vee - Tracks - Steel

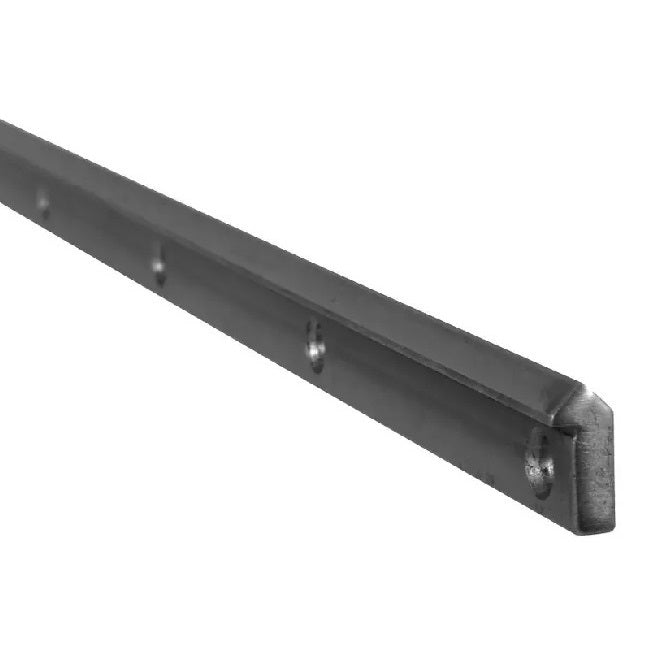

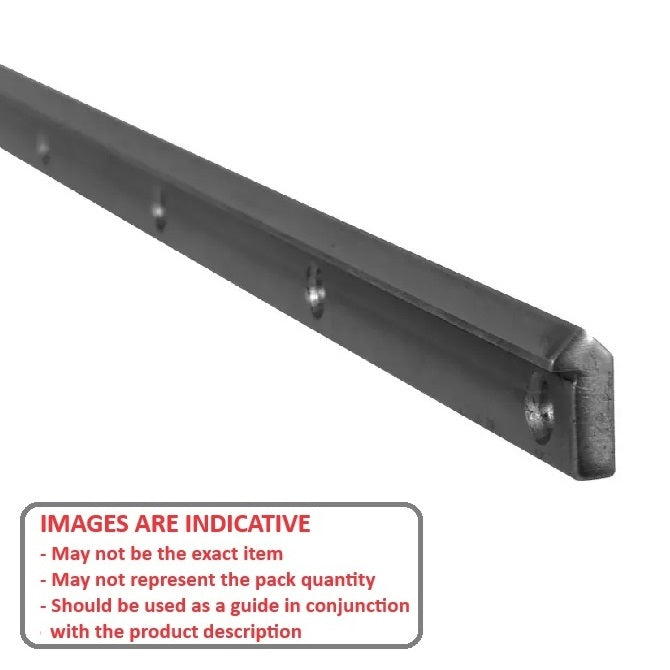

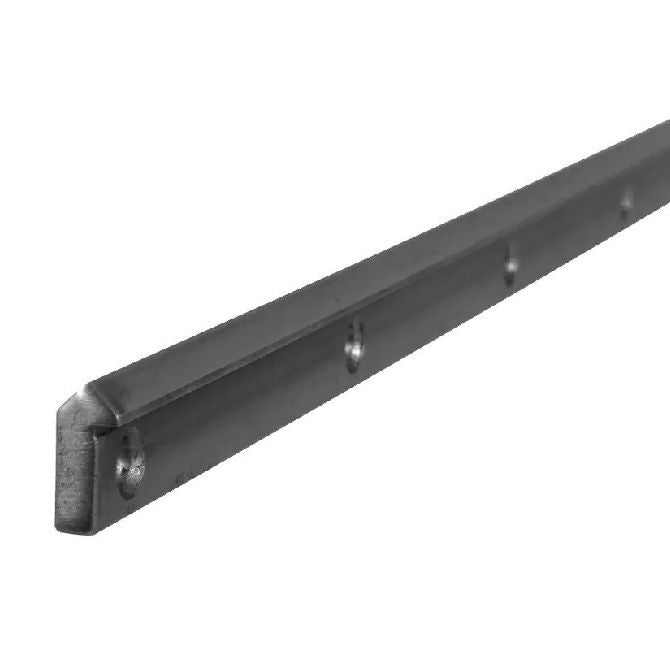

Steel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.

  • Match Track Size with same size Guide Wheel.

Product Data

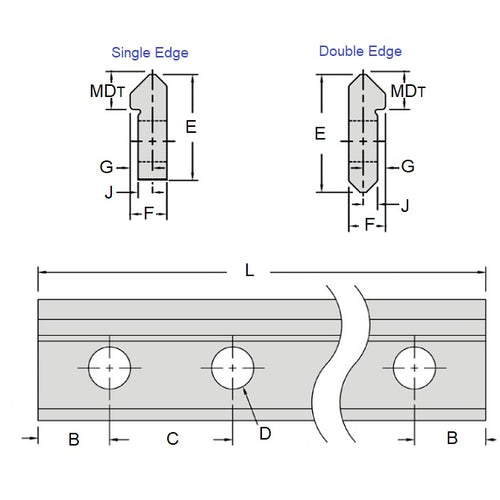

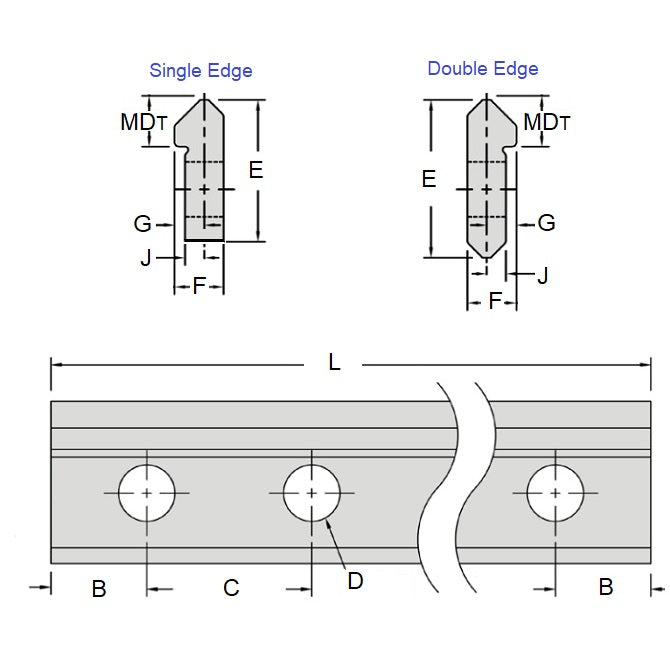

  • Track Size : 1
  • Overall Length (L) 1231.9 mm
    (Equiv. 48.5 in.)
  • Overall Width (F) 4.75 mm
    (Equiv. 0.187 in.)
  • Height (E / MDT) 11.11 / 3.18 mm
  • Type Single Edged
  • Hole Spacing (C) 50.8 mm
  • Number of Holes 25 (3.96mm)
  • End Hole Spacing (B) 6.35 mm
  • Condition Hardened Rc 58 - 60
  • Material Carbon Steel AISI 1045
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • WZ-17
    • WZ17
    • A7Q1514850
    • A7Q15-14850
    • A7Q15M14850
