COT-03178F-052-13-CS - Datasheet
MBA
Category Information

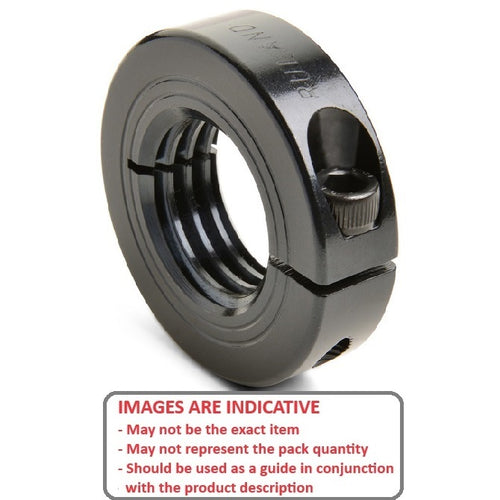

Collars - Threaded - Clamp Type - SteelSteel Clamp Type Threaded Collars. Offer full radial holding power without marring the shaft.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round threaded shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
Product Data

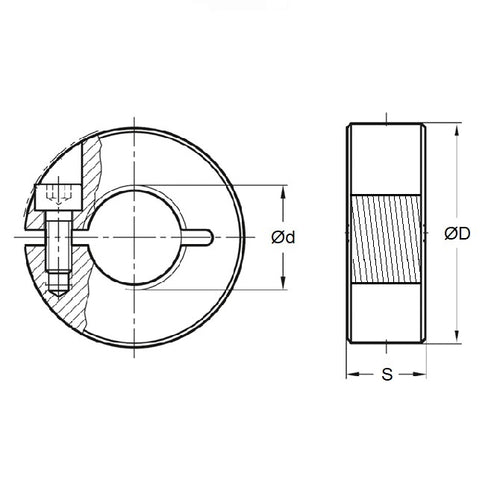

- Suitable Thread (B) : 1.1/4-12 UNF (31.75mm)
- Outside Diameter (A)
52.388
mm
(Equiv. 2.063 in.) - Width (C)
12.700
mm
(Equiv. 0.5 in.) - Clamping Screw Size 1/4-28 UNF (6.35mm)
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 6438K34
- CTC238
- CTC-238
