NT381C-HX-S6 - Datasheet
Brighton Best
Category Information

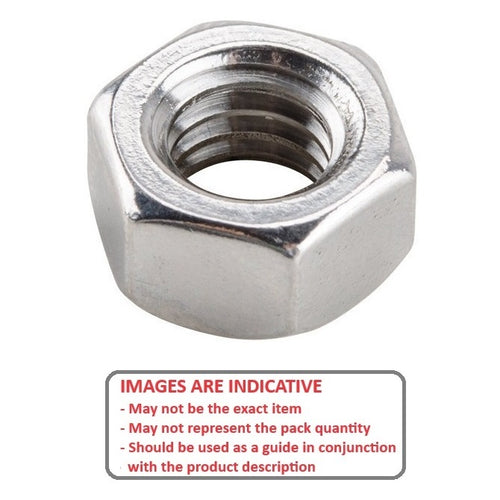

Nuts - Hexagonal - Full - Stainless SteelStainless Steel Full Hexagonal Nuts. UNC - UNF - BA - METRIC - BSW - Course - Fine - Extra Fine.
- An expanded range may be available on special order. Please enquire.

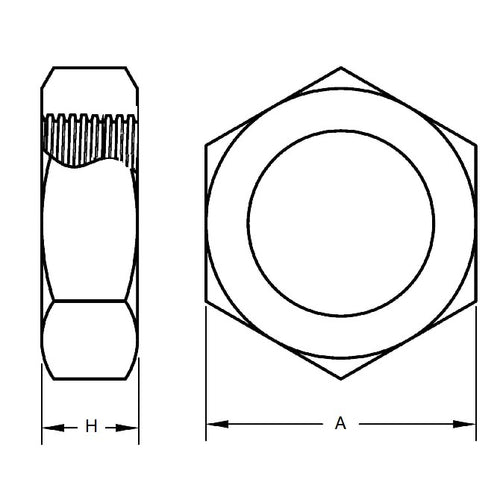

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 1.1/2-6 UNC (38.1mm)
- Thickness (H)
32.54
mm
(Equiv. 1.281 in.) - Across Flats (A/F)
57.15
mm
(Equiv. 2.25 in.) - Type Standard
- Pitch 4.233 mm
- Threads Per Inch 6 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 763066
- 94804A041
